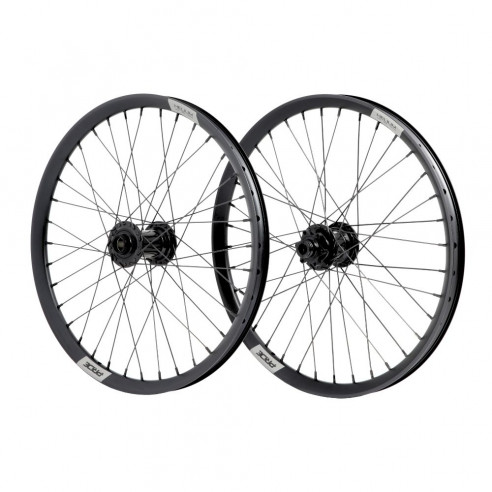

Wheels 20" (406) Pride Fusion 20/10mm Black - Helium m24

PRIDE CONTROL / MATRIX WHEELS

Pride Racing wheels are designed in 6061-T6 aluminum and specifically developed for BMX Race in 20" (406) format. They combine Pride Racing components with Control rims and Matrix hubs, delivering a perfectly cohesive setup. The T6 heat treatment gives the rims an excellent balance of lightness, stiffness, and efficiency, ensuring optimal performance on the track.

The Matrix hubs feature a high-performance engagement system that ensures near-instant power transfer, ideal for explosive starts and technical accelerations. This system is based on two alternating rows of 6 pawls, for a total of 12 pawls, allowing up to 216 points of engagement. With an angle of only 1.67°, each pedal stroke results in immediate responsiveness.

NOTES

• The 20mm front axle is not included
• The rear wheel is supplied with a lock ring as well as spacers to adjust the chain line.
• Rim tape is not included

SPECIFICATIONS - RIMS

• Model: Pride Control Pro
• Size / ETRTO: 20" / 23-406 (FR) 24-406 (RR)
• Material: 6061-T6 Aluminum
• Walls: Double
• Number of spokes: 36
• Height: 19mm
• Width: 27mm (FR) / 28mm (RR)
• V-Brake compatibility: No
• Valve type: Schrader
• Compatible tire section: 28-65mm

SPECIFICATIONS - HUBS

• Material: 6061-T6 Aluminum
• Front spacing: 20x100mm (axle not included)
• Rear spacing: 10x110mm (female hardware)
• Driver standard: Shimano
• Engagement type: 216 points / 12 pawls
• Disc mounting: ISO6
• Front bearing: 6804
• Rear bearing: 6903

WEIGHT

• Wheelset: 1734g
• Front wheel: 729g
• Rear wheel: 1005g
