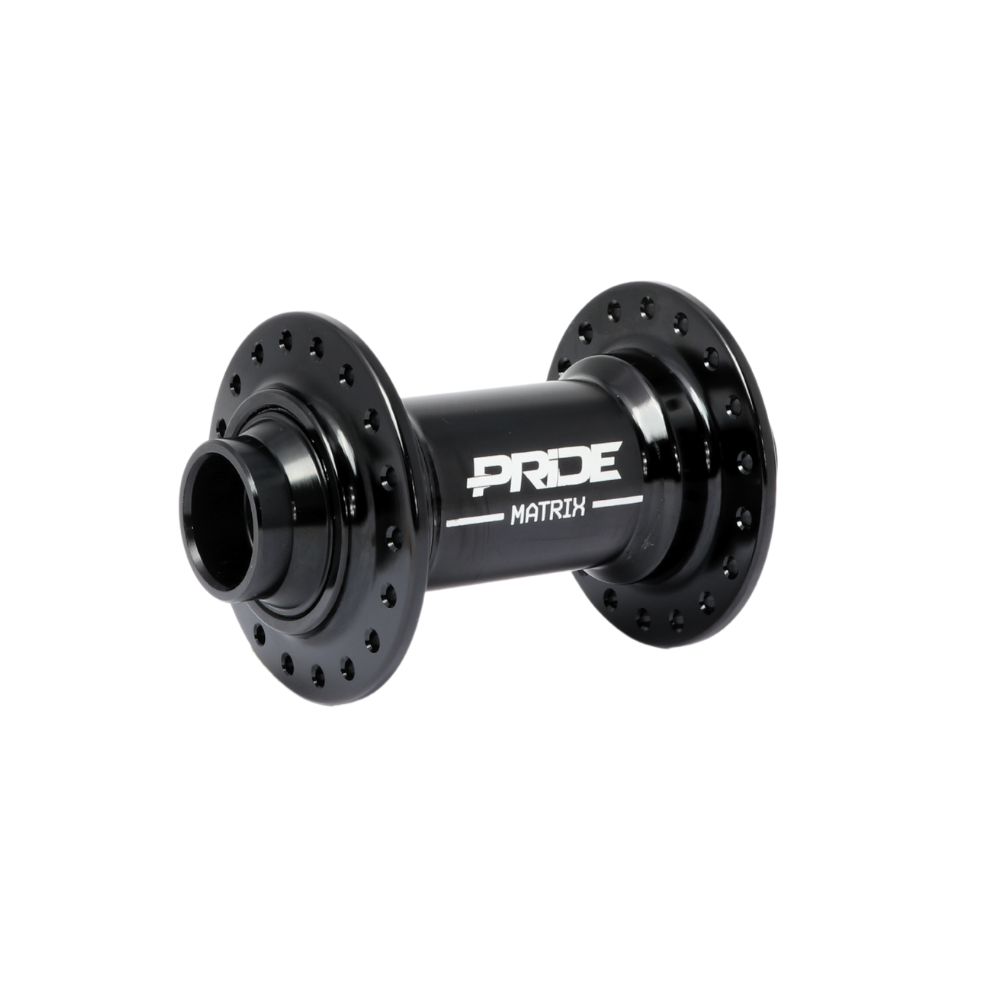

Simplicity. Stiffness. Performance.
Designed for riders who demand a reliable, stiff setup without unnecessary extras, the Pride Matrix front hub is a high-performance, lightweight, and durable solution.
Available in two standards, it easily fits into any premium build:
20 mm thru-axle for maximum stiffness
10 mm axle with female bolts for more traditional setups
CNC-machined 6061-T6 aluminum shell
→ Lightweight, strong, and finely finished
High-quality sealed bearings
→ Long-lasting smoothness and protection against dust and moisture
Available in 28 or 36 holes
→ Fits all lacing patterns
Perfect compatibility with 10 mm and 20 mm forks

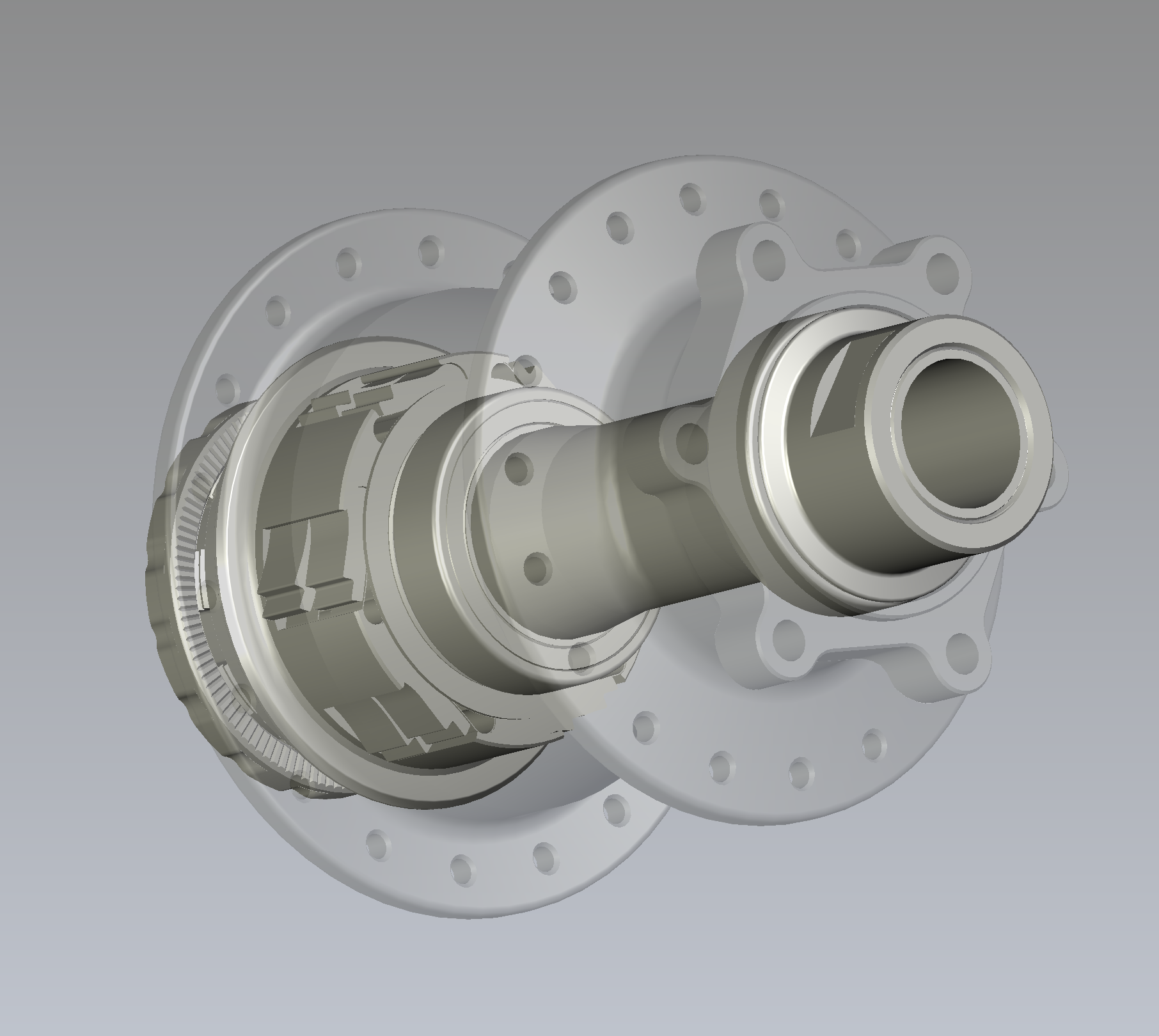

The Pride Matrix hub pushes the boundaries of BMX Race drivetrain performance by delivering an unique mechanical response.
With its unique architecture of 12 pawls and 216 points of engagement, it offers exceptional control and instant reactivity from the very first pedal stroke.
The Matrix isn’t just built for fast engagement — it’s engineered to make every pedal stroke count:
216 points of engagement, meaning one engagement every 1.66° of rotation
Enables ultra-precise pedal positioning on the gate
Delivers instant pedal pickup, perfect for corner exits and explosive sprints

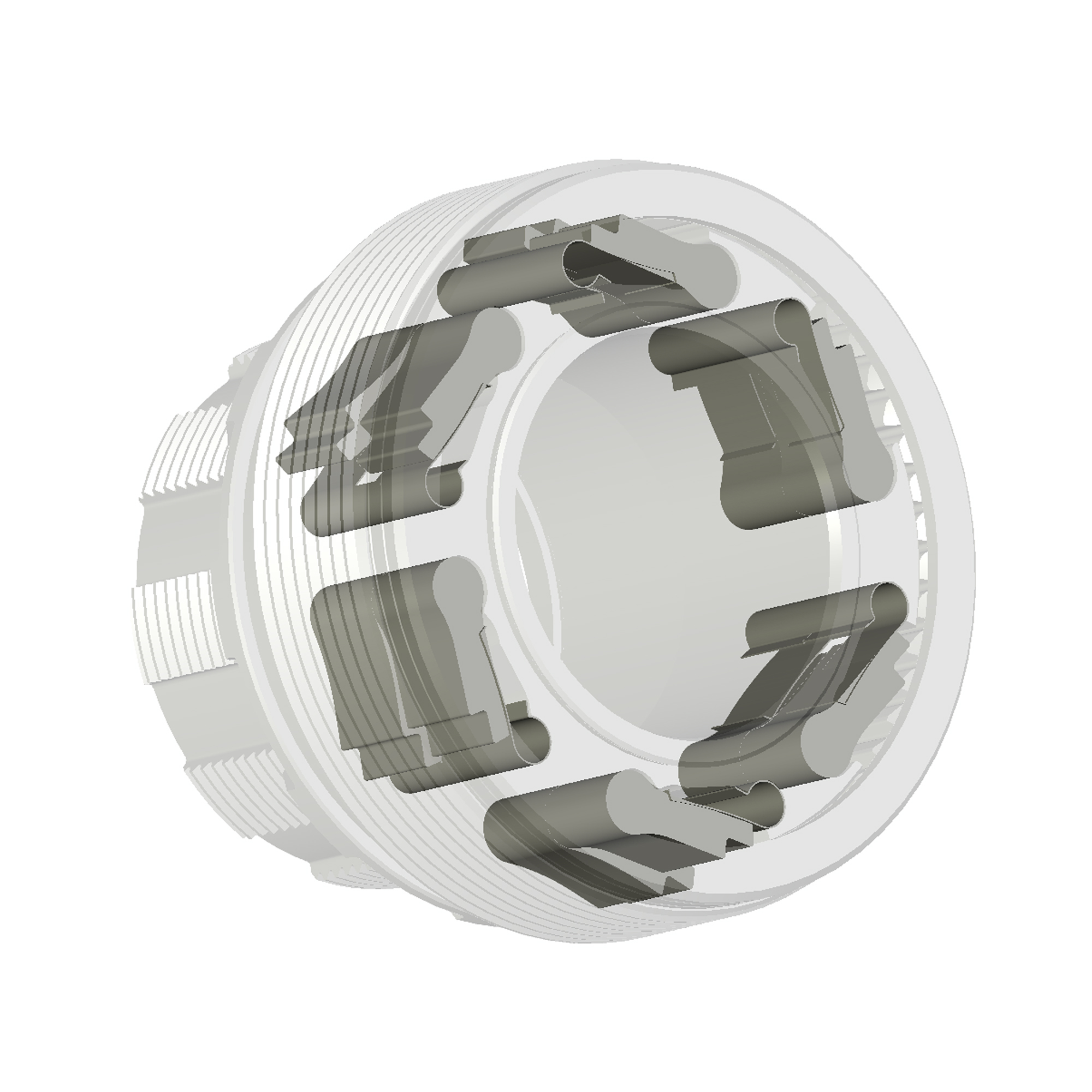

The Matrix engagement system is exclusive and patented pending:
12 alternating pawls on a 54-tooth ratchet
Balanced force distribution reduces wear and ensures consistent, reliable engagement
Instant response, delivering uncompromising performance
Ultra-fast 1.66° engagement — ideal for explosive starts, tight sprints.
Smart force distribution: pawls alternate to improve durability
Consistent power transfer: no dead zones, no lag
Shows the first 3 pawls (green) engaged with the ratchet teeth.
The 3 other groups (3×3 pawls) are in a resting position, offset from the active ones.
Rotation of 1.66°

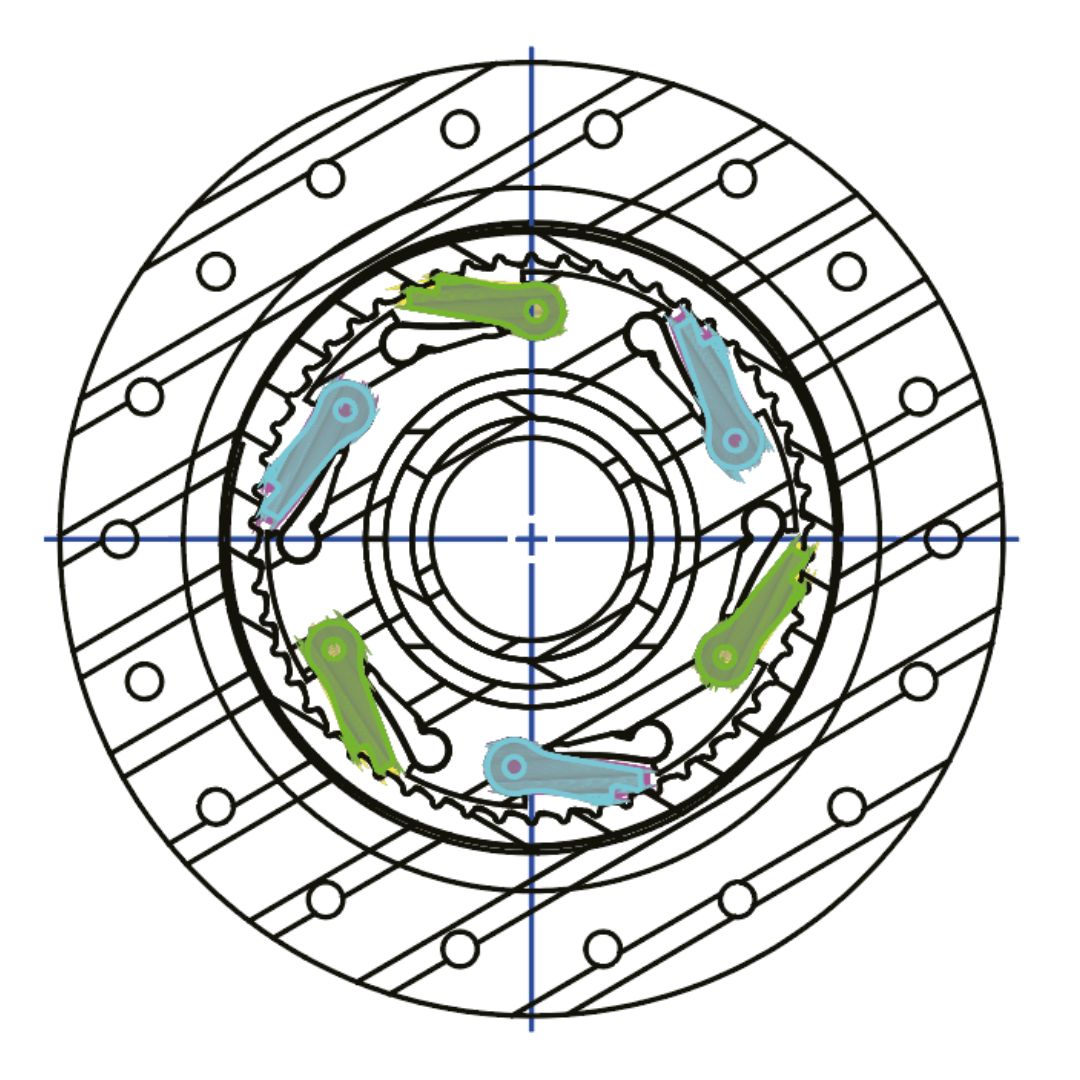

Row 1 has disengaged.
Row 2 – Group 2
(3 other pawls) is now engaged with the next set of teeth.
Rotation of 1.66°
Row 2 has disengaged.
Row 1 – Group 3 (3 more pawls) is now engaged with the next set of teeth.
Row 1 has disengaged.
Row 2 – Group 4 (the final 3 pawls) is now engaged with the next set of teeth.
.jpg)
.jpg)

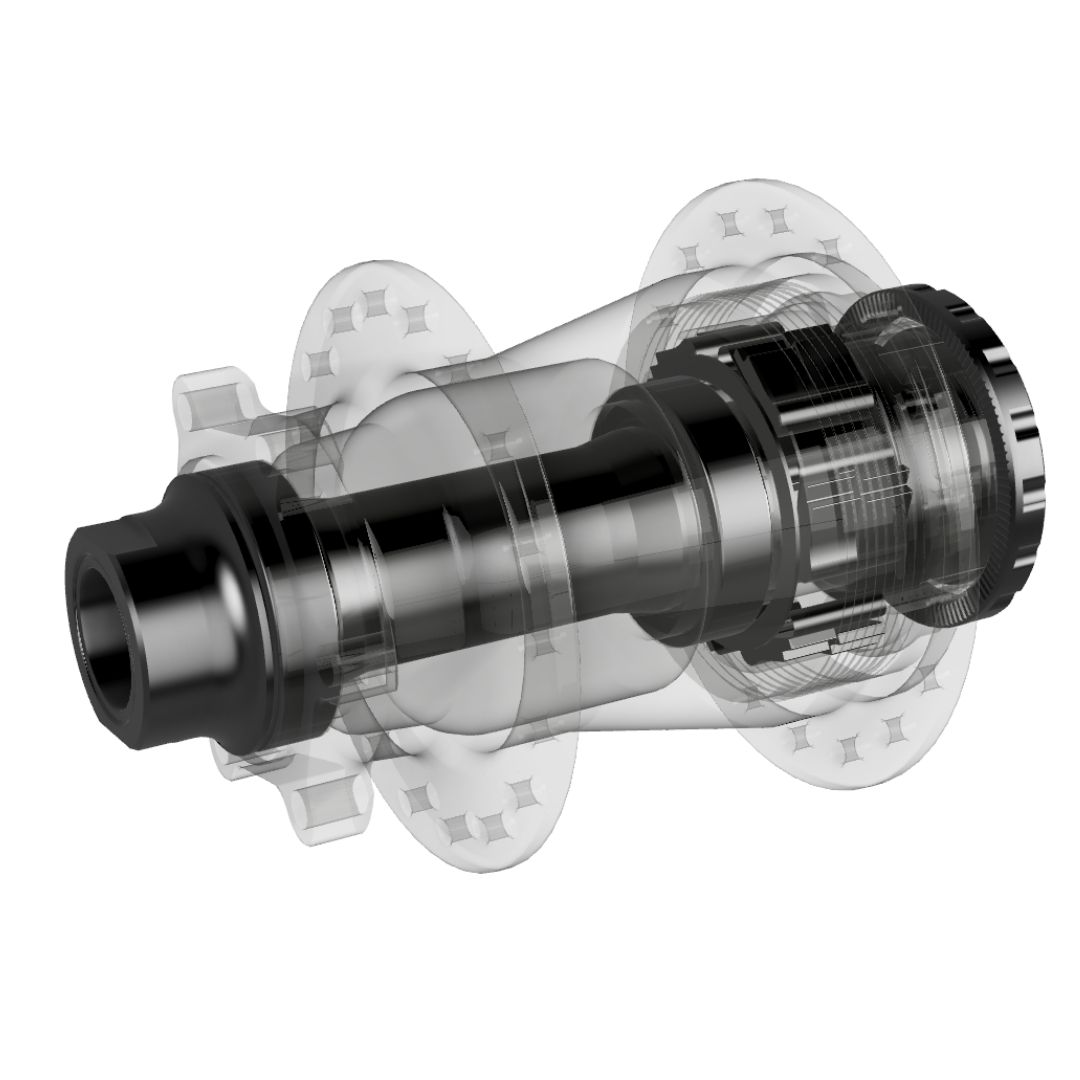

Every component of the Matrix benefits from high-precision CNC machining:
CNC-machined 6061-T6 aluminum hub shell – optimal stiffness and flawless finish
CNC-machined 7075-T6 aluminum driver – precision and lightweight performance
Tight mechanical tolerances for perfect hub-to-cassette alignment
Compatible with 120 mm disc setups, with no spoke interference
Axles: available in 15 mm thru-axle or 10 mm bolt-on
High-precision bearings
Drillings: available in 28 or 36 holes (28H only with 10 mm axle)
Cassette body: compatible with Shimano HG
Includes:
Elite lockring
Chain alignment spacer ring
Our limited editions are the result of complex anodizing processes that produce truly unique finishes. These colors are nearly impossible to reproduce identically.
Each series is manufactured in limited quantities, with a focus on perfect harmony between the front and rear hubs.
That’s why these editions are only available as a complete set — never sold separately.
Unique finishes, impossible to replicate
Sold exclusively as front + rear hub pairs
