Wheels 24" (507) Pride Gravity Matt Disque - Fusion 20/15mm

PRIDE GRAVITY / FUSION WHEELS

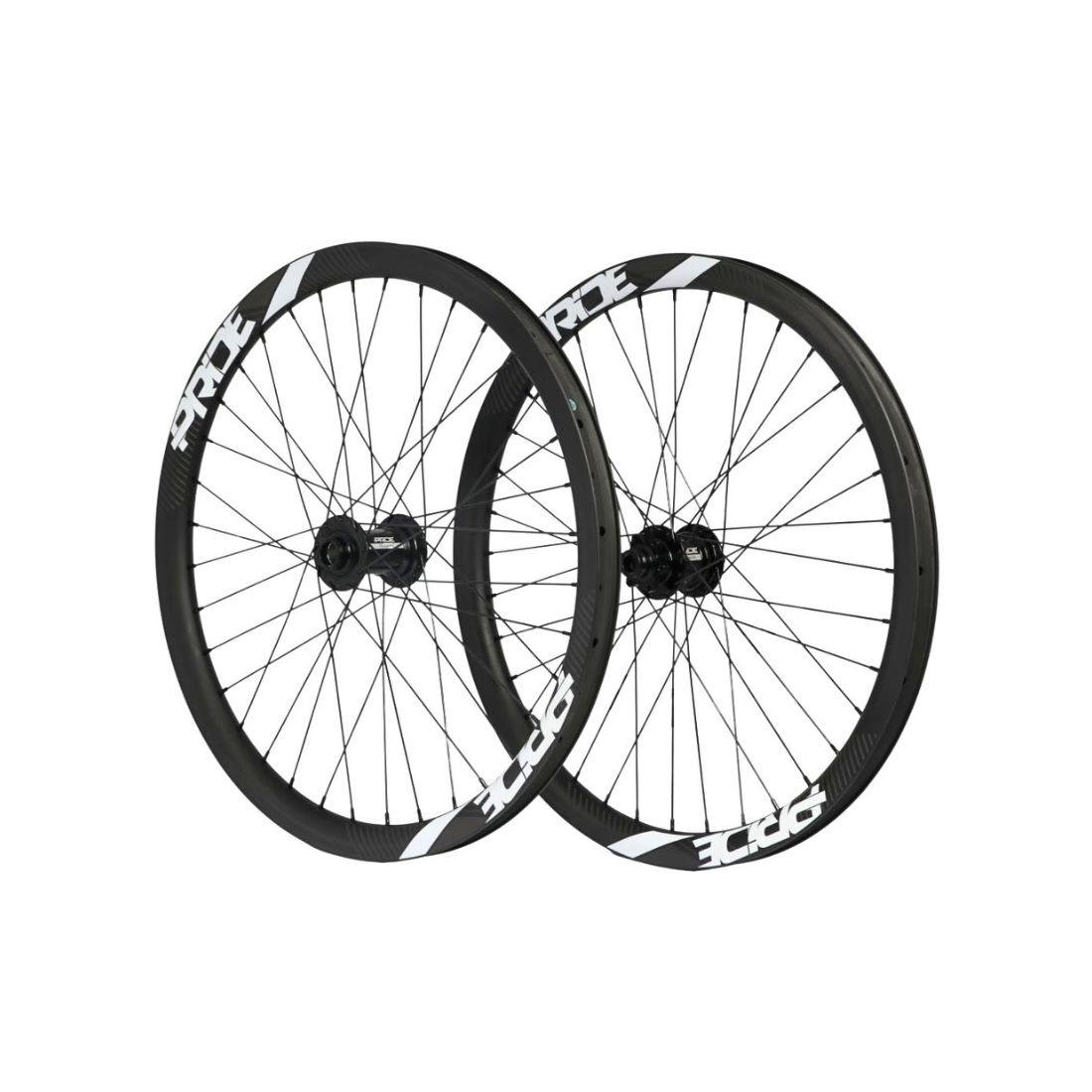

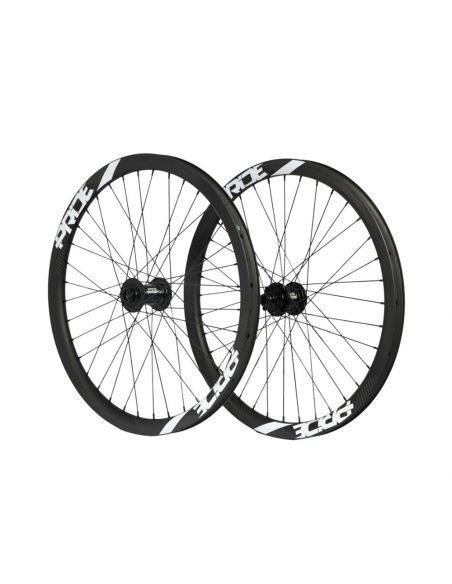

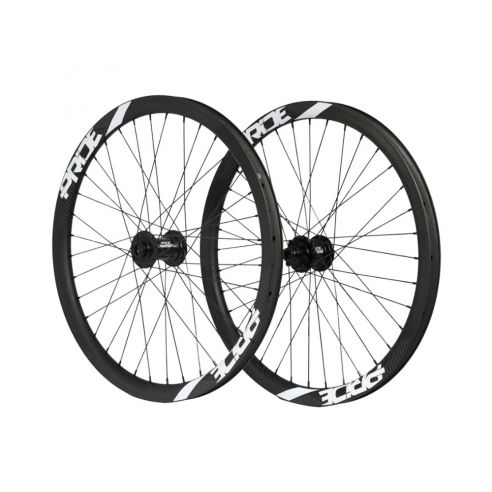

This pair of Pride wheels is equipped with Gravity Carbon rims and Fusion hubs.

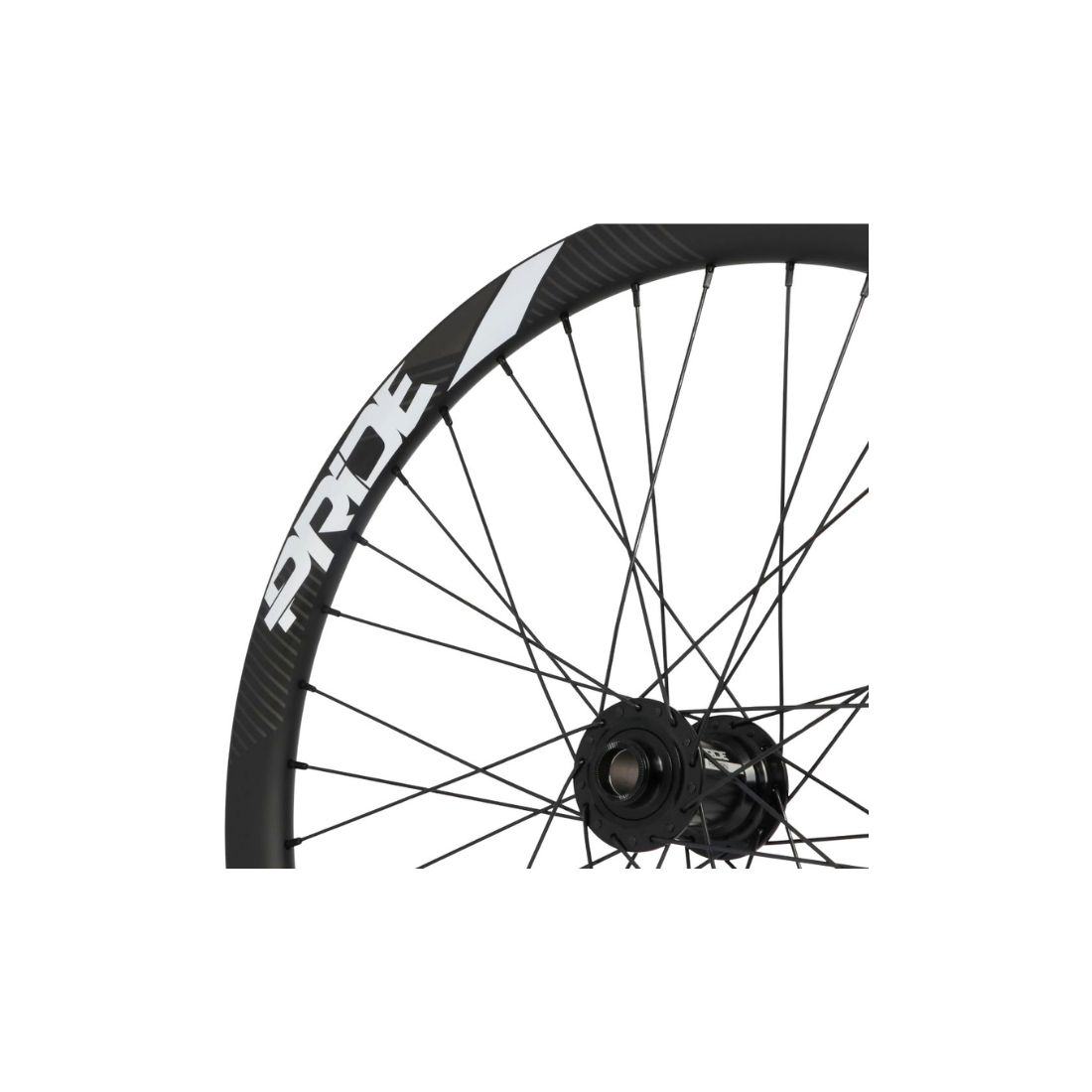

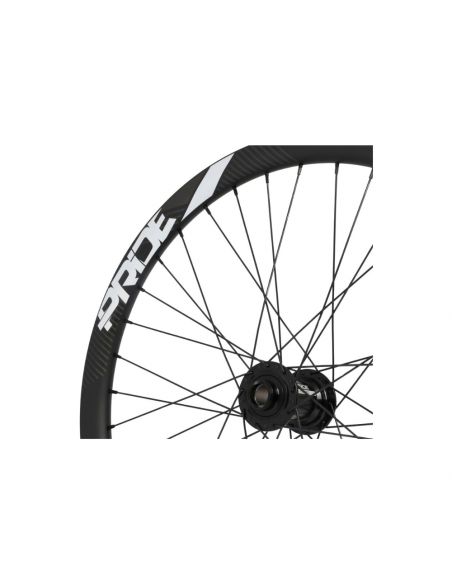

• Designed and developed exclusively for BMX Race, the Pride Gravity rims meet the most extreme demands of the discipline. The Gravity rim is built from Today T700 carbon. Its profile helps reduce wind resistance while optimizing vertical and lateral stiffness. The Gravity rim is Tubeless compatible. This requires the use of a specific Tubeless rim tape, valve, and tire.

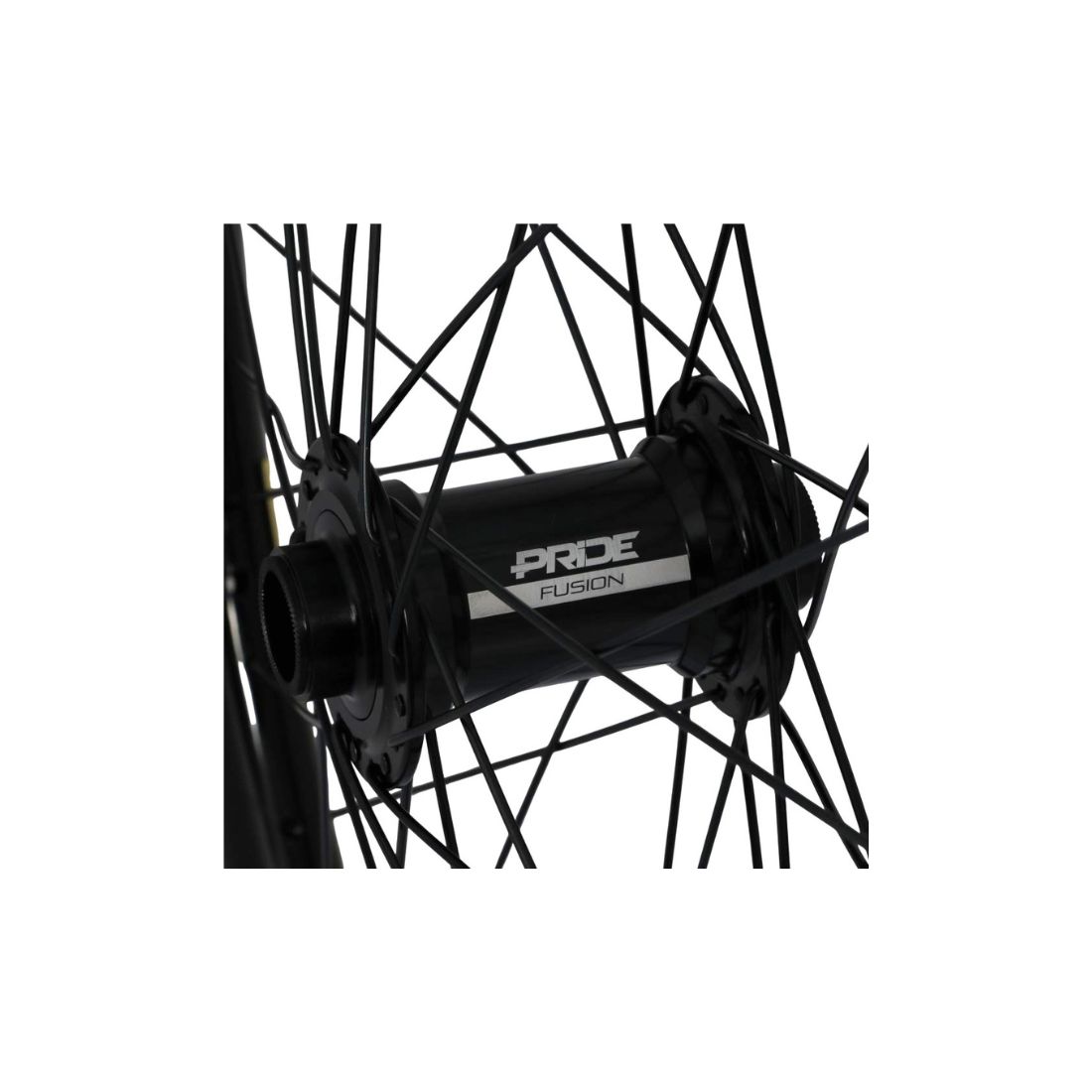

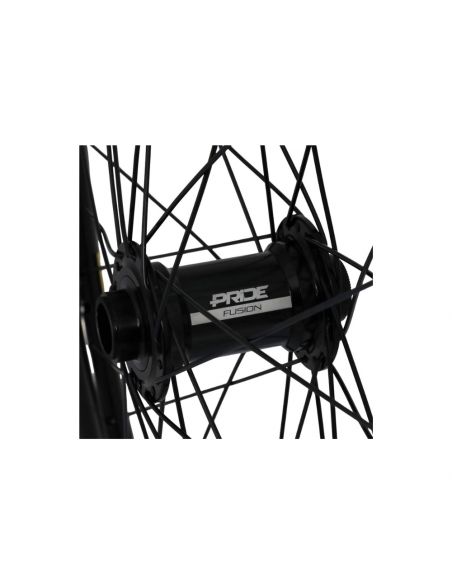

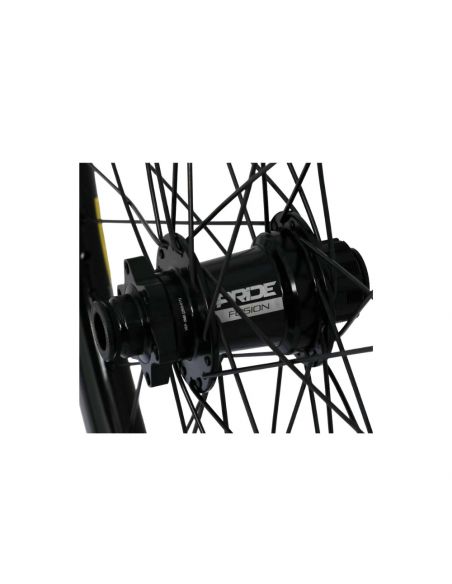

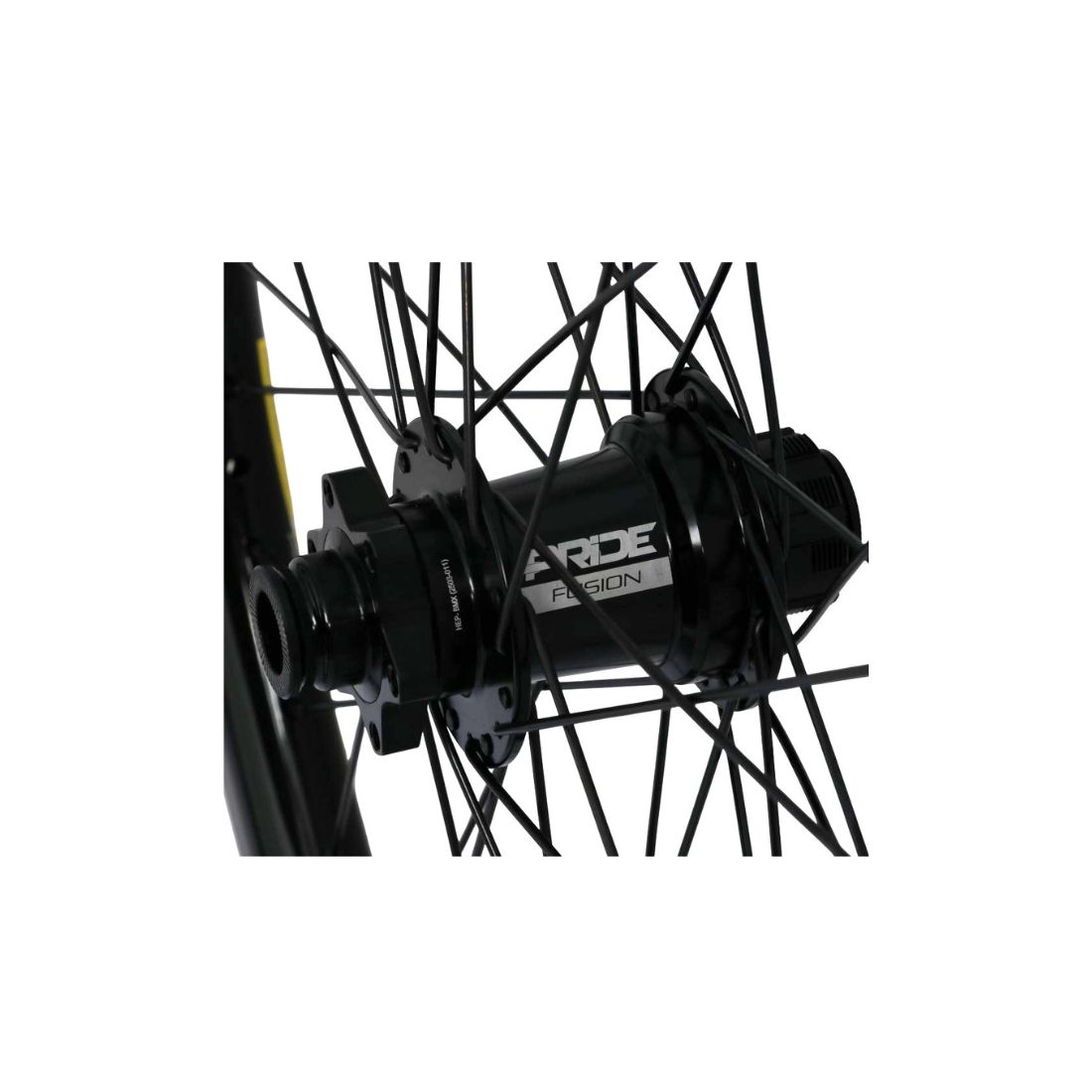

The FUSION hubs offer ultra-fast engagement with 180 points thanks to a 6-pawl system, minimal drag, excellent smoothness, and optimal durability. Ultra-lightweight, they ensure maximum efficiency, precise control, and optimized compatibility with 120 mm discs for cleaner and more efficient braking.

This wheelset combines lightweight construction, stiffness, and performance, making it an essential piece of equipment for BMX Race riders seeking speed and reliability.

NOTES

• 20 mm and 15 mm wheel axles are not included.
• The rear wheel is supplied with a lock ring as well as a spacer to adjust the chainline.

NOTES

• The 20 mm front wheel axle is not included.
• The rear wheel is supplied with a lock ring as well as spacers to adjust the chainline.

SPECIFICATIONS - RIMS

• Size/ETRTO: 24" / 24-507
• Material: Carbon
• Height: 30 mm
• Width: 30 mm
• V-Brake Compatibility: No
• Valve Compatibility: Presta
• Tire Compatibility: 24x1.50" - 24x1.90"

SPECIFICATIONS - HUBS

• Material: 6061-T6 Aluminum
• Front Spacing: 100x20 mm (Thru Axle)
• Rear Spacing: 100x15 mm (Thru Axle)
• Driver Standard: Shimano
• Engagement Type: 180 points

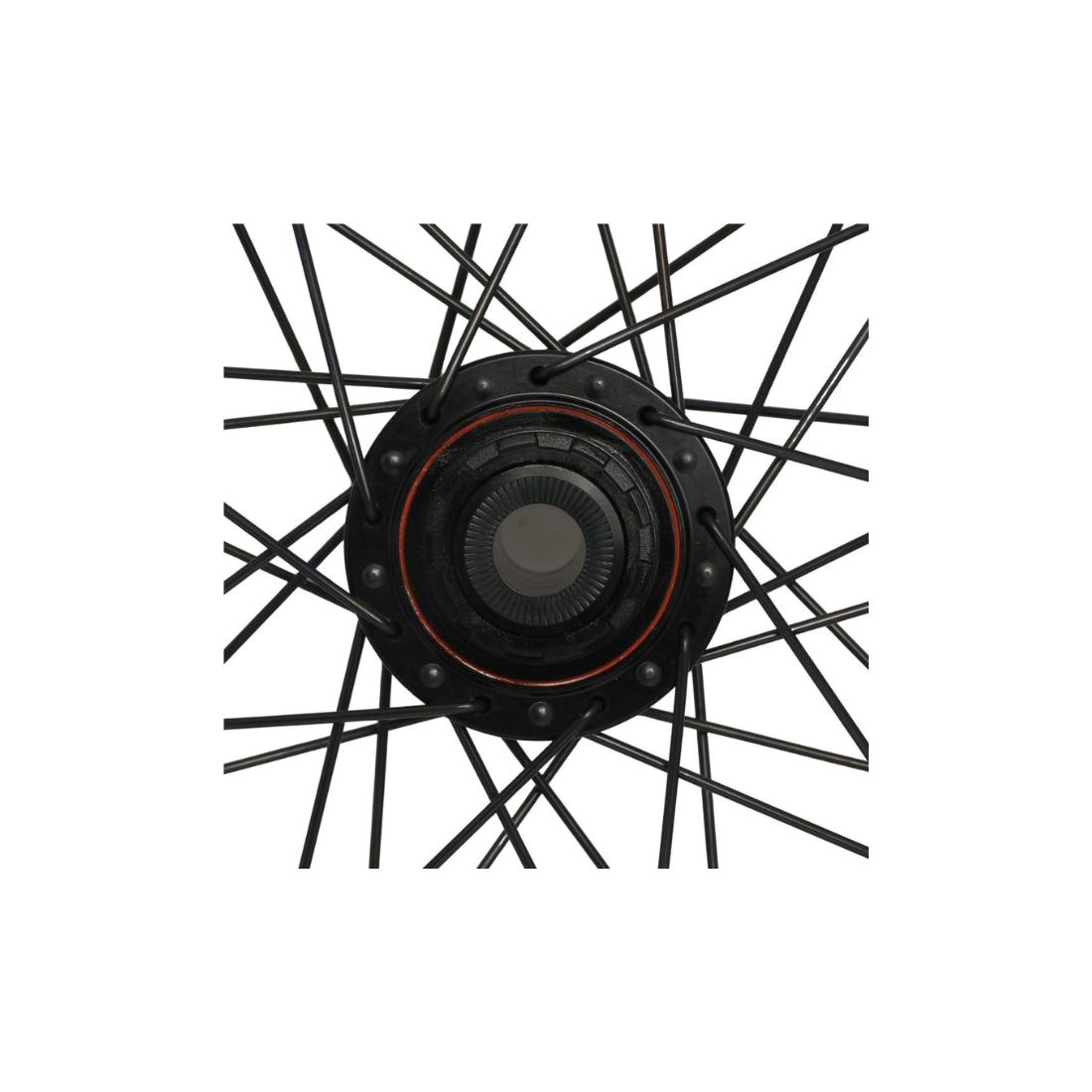

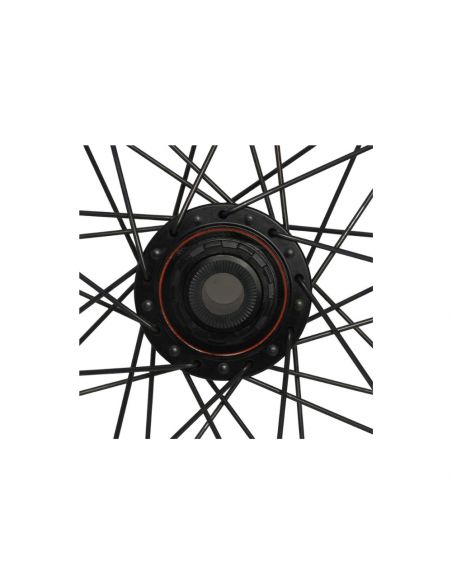

• Disc Mount: ISO6
• Front Hub Bearings: 6805
• Rear Hub Bearings: 6804

WEIGHT

• Pair: 1861 g
• Front Wheel: 885 g
• Rear Wheel: 976 g
