Pride bb386 Interlock ø24mm Bottom Bracket - Sealed

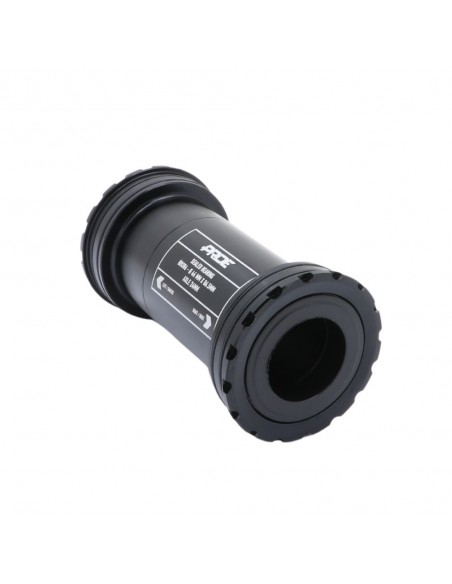

PRIDE RACING BB386 INTERLOCK BOTTOM BRACKET - 24MM

Thanks to its "Interlock" design, the Pride Racing bottom bracket is ideal if you don’t have a press to install the cups into your frame. Simply place the two cups on either side of the frame and screw the two parts together using the specific tool for this bottom bracket. Then just tighten the assembly and you’re done!

This bottom bracket has two CNC machined 7075 Aluminum cups anodized for a perfect finish. It is designed to fit a 24mm crankset on a Pressfit BB386 frame with a 46mm internal diameter and 86mm shell width. The bottom bracket is equipped with sealed bearings to ensure smooth pedaling and prolong their lifespan. All technical information is laser-engraved on the bracket.

SPECIFICATIONS

• Bottom bracket type: BB386
• Installation: Threaded
• Spindle diameter: 24mm
• Internal frame diameter: 46mm
• Width: 86mm
• Bearings: 6805-2RS
• Material: 7075 Aluminum
• Weight: 135g
