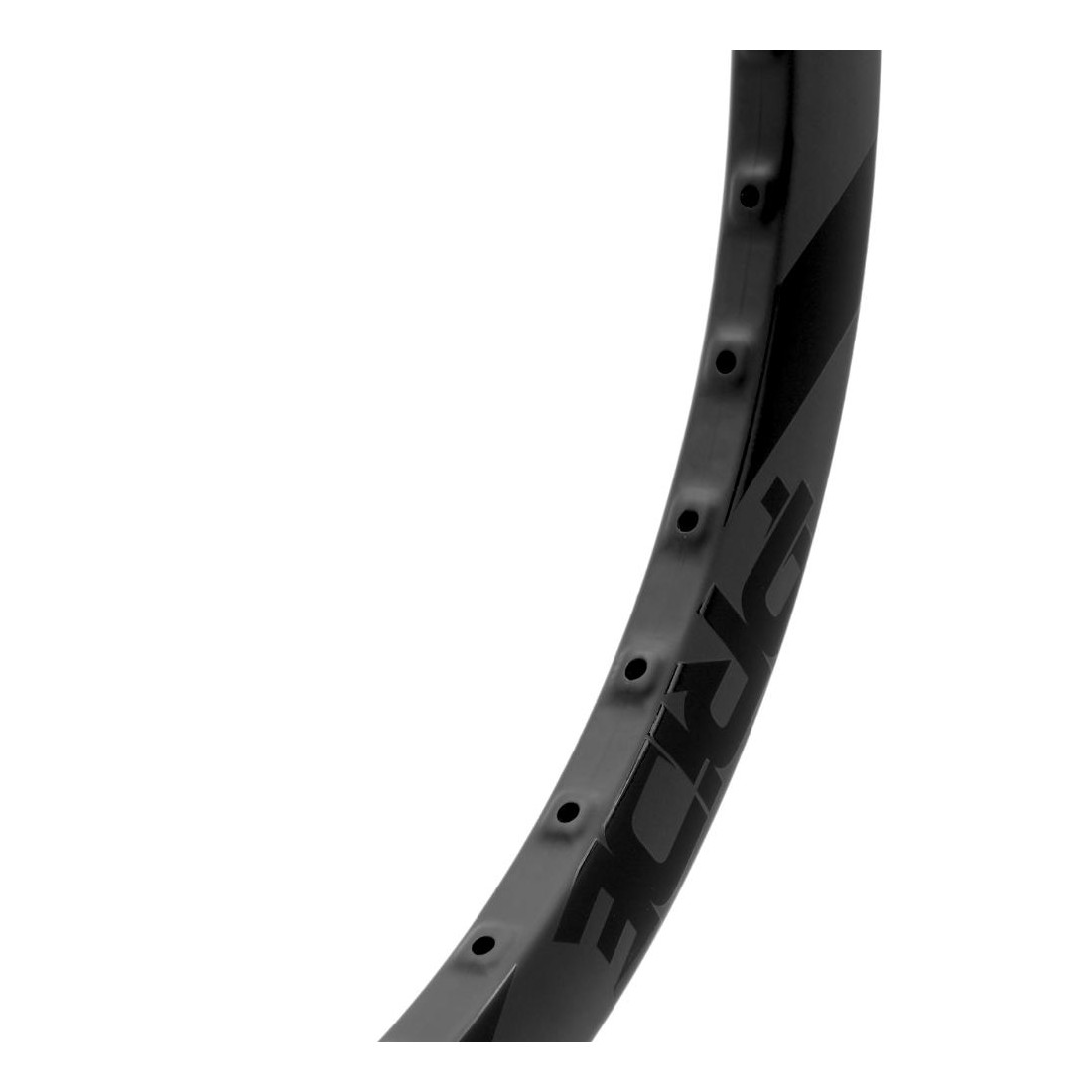

20" (406) Pride Wave Cfr Rim 36h - Ud Matte/Black

PRIDE CARBON WAVE CFR 20"" 36H RIM

Discover the WAVE rim, created and developed exclusively for BMX Race riding. This is a new exclusive design by Pride Racing, including a square reinforcement at each spoke head. This allows higher spoke tension for superior wheel stiffness. The spoke heads will also be better aligned during lacing.

The Wave rim is made of Toray T700 carbon and features a very low profile: 22mm high and 31mm wide. These dimensions reduce wind resistance and optimize vertical and lateral stiffness. Weighing under 300g, it becomes one of the lightest rims on the market, a true advantage on the track!

This rim is Tubeless compatible. This requires using a rim strip, a valve, and a specific Tubeless tire. It does not have brake track for pads and is compatible only with disc brakes.

SPECIFICATIONS

• Material: Toray T700 Carbon
• Number of holes: 36
• Rim height: 22mm
• Width: 31mm
• ETRTO: 406mm
• ERD: 380mm
• Valve type: Presta
• V-brake compatibility: No
• Tire compatibility: 20'' x 1.40 - 20'' x 1.85
• Tubeless compatibility: Yes
• Weight: 295g

• ---

• RECOMMENDATIONS / ASSEMBLY

  Please strictly follow the recommendations below or the product warranty will be void:

• - Do not exceed the maximum pressure of your tire
• - Lacing with 3-cross pattern only, no radial lacing
• - Recommended spoke tension: 110 kgf
• - Use front or rear only with disc brakes
