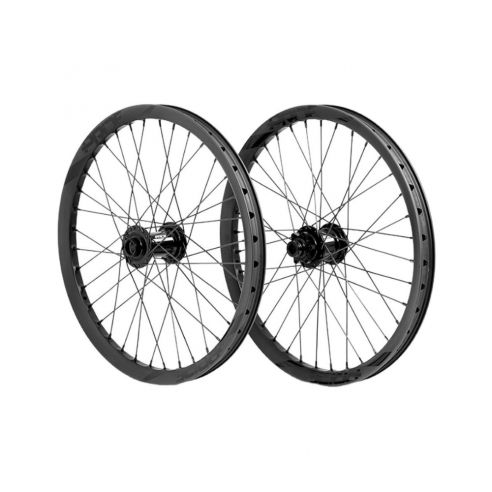

Wheels 20" (406) Pride Wave Matt Black - Fusion 20/15mm Black

PRIDE WAVE / FUSION WHEELS

Discover Pride Racing’s high-end wheelset, specifically designed for BMX Race. It features the PRIDE Wave rim combined with Pride Control V2 hubs.

The WAVE rim, developed exclusively by Pride Racing, represents a true innovation with its unique design and square reinforcement positioned at each spoke nipple. This reinforcement allows for higher spoke tension, resulting in increased stiffness. In addition, the optimized orientation of the spoke nipples makes wheel building easier.

Made from Toray T700 carbon, the rim has a very low profile, with a height of 22 mm and a width of 31 mm. This design minimizes wind resistance while ensuring excellent vertical and lateral stiffness. Weighing under 300 g, it is among the lightest rims on the market—an undeniable advantage in competition.

Tubeless-ready, it requires rim tape, a valve, and specific tubeless tires. The rim is disc-brake only, as it does not feature brake tracks for rim brakes.

The FUSION hubs provide ultra-fast engagement with 180 points thanks to a 6-pawl system, minimal drag, excellent smoothness, and optimal durability. Ultra-lightweight, they ensure maximum efficiency, precise control, and optimized compatibility with 120 mm discs for cleaner and more effective braking.

This wheelset perfectly combines lightness, stiffness, and performance, making it an essential choice for BMX Race riders seeking speed and reliability.

NOTES

• The 20 mm front axle is not included.
• The rear wheel is supplied with a lock ring and spacers to adjust the chain line.

SPECIFICATIONS – RIMS

• Size / ETRTO : 20" – 406x23
• Material : Carbon
• Height : 22 mm
• Width : 31 mm
• Valve compatibility : Presta
• Tire compatibility : 20x1.40" – 20x1.90"

SPECIFICATIONS – HUBS

• Material : 6061-T6 Aluminum
• Front spacing : 100x20 mm (thru-axle)
• Rear spacing : 110x15 mm (thru-axle)
• Driver standard : Shimano
• Engagement type : 180 points
• Disc mount : ISO 6-bolt
• Front hub bearings : 6805
• Rear hub bearings : 6804

WEIGHT

• Wheelset : 1780g
• Front wheel : 880g
• Rear wheel : 900g
