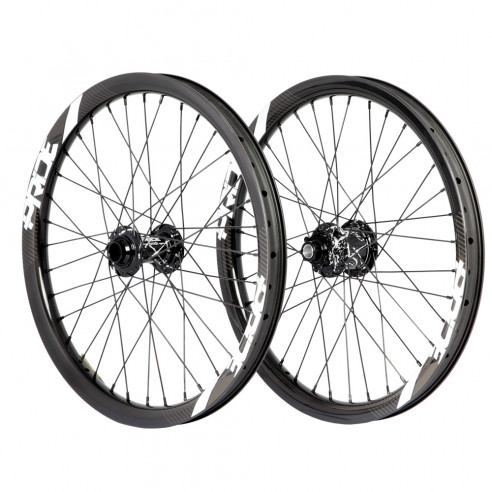

Wheels 20" (406) Pride Gravity Gloss Disque - Matrix Splash Blk/Slv 20/15mm

PRIDE GRAVITY / MATRIX WHEELS

This pair of Pride wheels is equipped with Gravity carbon rims and Matrix hubs.

• Created and developed exclusively for BMX Racing, Pride Gravity rims meet the most extreme demands of the discipline. The Gravity rim is constructed from Toray T700 carbon. Its profile helps reduce wind resistance and optimizes both vertical and lateral stiffness. The Gravity rim is Tubeless compatible. This requires the use of a rim tape, a valve, and a specific Tubeless tire.

The Matrix hubs feature a high-performance engagement system ensuring near-instant power transfer, ideal for explosive starts and technical accelerations. This system is based on two alternating rows of 6 pawls, for a total of 12 pawls, allowing 216 engagement points. With an angle of only 1.67°, each pedal stroke results in immediate responsiveness.

NOTES

• 20mm and 15mm wheel axles are not included.
• The rear wheel is supplied with a lock ring as well as a spacer to adjust the chainline.

SPECIFICATIONS - RIMS

• Model: Pride Gravity
• Material: Toray T700 Carbon
• Size / ETRTO: 20" / 23-406
• Height: 30mm
• Width: 30mm
• V-Brake compatibility: No
• Valve compatibility: Presta
• Tire compatibility: 20x1.40" - 20x1.90"

SPECIFICATIONS - HUBS

• Material: Aluminum
• Front spacing: 20x100mm
• Rear spacing: 15x110mm
• Number of holes: 36
• Driver standard: Shimano
• Engagement type: 216 points / 12 pawls
• Disc mounting: ISO6
• Front bearings: 6804
• Rear bearings: 18307 (18x30x7mm)

WEIGHT

• Pair: 1577g
• Front wheel: 704g
• Rear wheel: 873g
