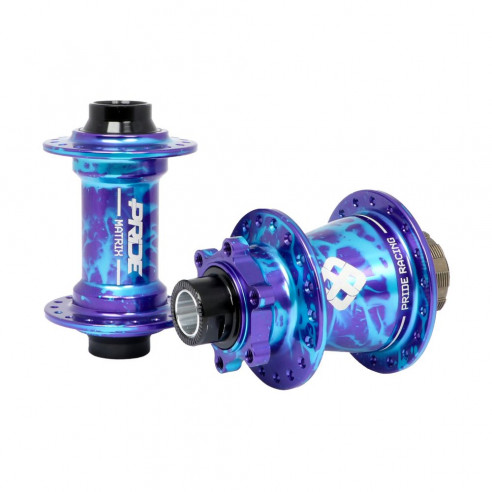

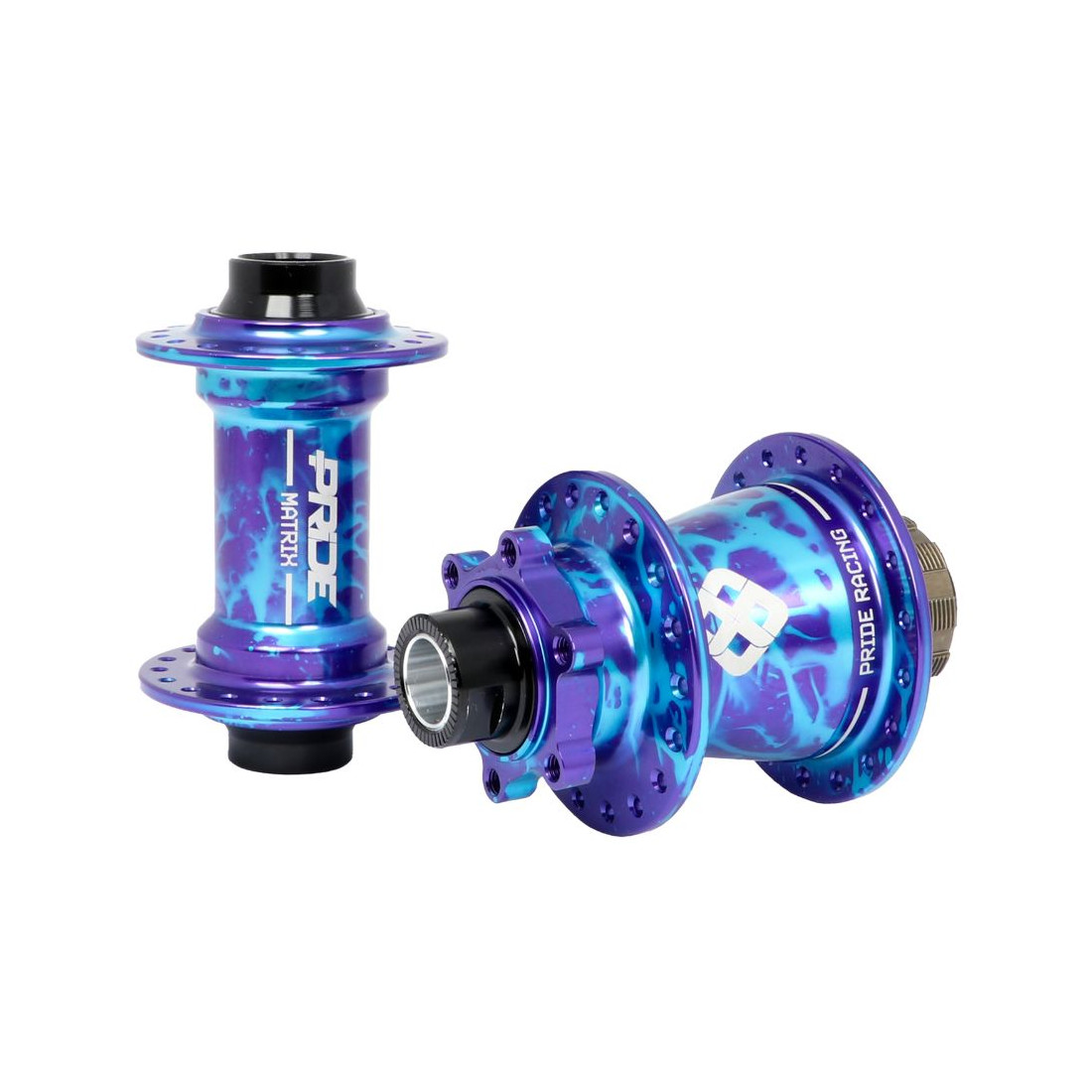

Pride Matrix Hubs Splash Blue/Purple - 20/10mm - 36h

NO CONTRACTUAL PHOTO

PRIDE MATRIX HUBS

The Pride Matrix hubs represent the top-tier offering from Pride Racing, engineered to deliver peak performance and maximum responsiveness on the track.

They have been developed with the primary goal of delivering near-instant engagement without compromising on weight. The Matrix hubs feature an innovative engagement system that ensures virtually immediate power transfer—perfect for explosive starts and technical sprints.

At the heart of the system are two rows of 6 pawls, for a total of 12 pawls working in an alternating pattern. This design provides 216 points of engagement with an ultra-tight 1.67° engagement angle, allowing for an almost instant connection with every pedal stroke.

To address one of the most common issues in BMX—caliper-to-spoke interference—the rear hub has also been optimized for 120mm rotors, offering better clearance between the spokes and caliper.

The Matrix hubs stand as a true reference for riders looking for precision, responsiveness, and reliability—without compromise.

NOTE: A lock ring and spacers are included with the hub.

SPECIFICATIONS

• Material: 6061-T6 Aluminum
• Front spacing: 100x20mm
• Rear spacing: 110x10mm
• Hole count: 36
• Driver standard: Shimano
• Engagement system: 216 points / 12 pawls
• Disc mount: ISO 6-bolt
• Front hub bearing: 6805 (25x37x7mm)
• Rear hub bearings: 6903 (17x30x7mm)
• Weight: 182g (Front) / 349g (Rear)
