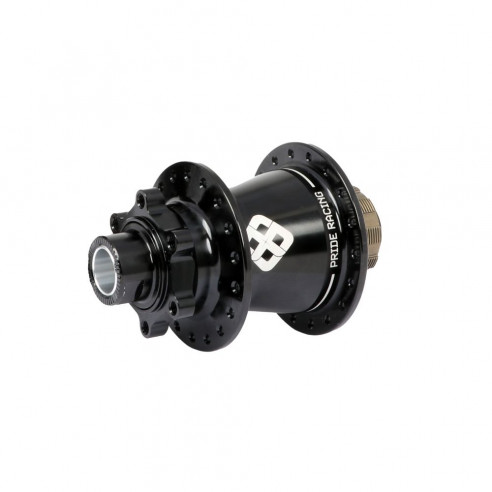

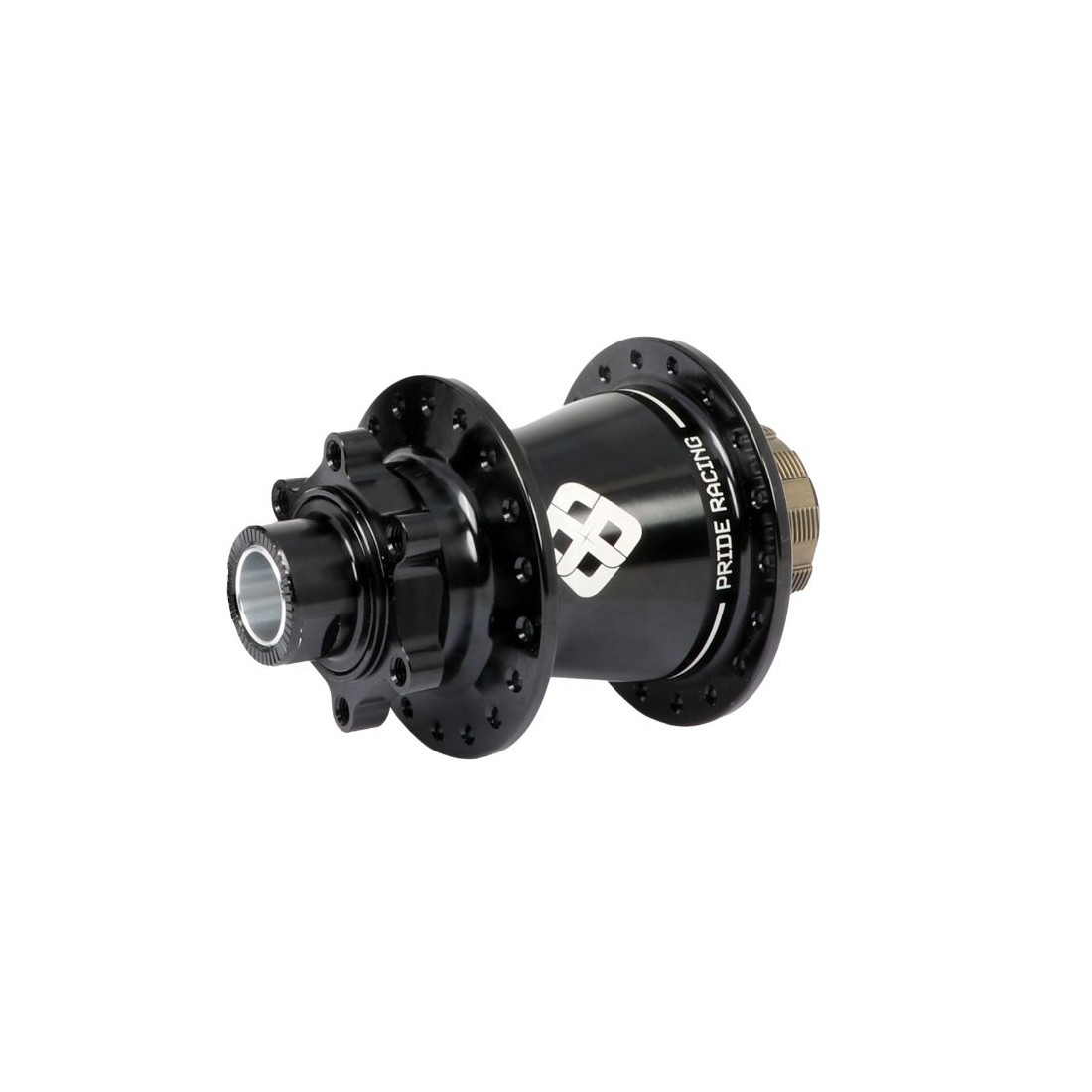

Pride Matrix Rear Hub Black- 15mm

PRIDE MATRIX HUB

The Pride Matrix hubs represent the top-of-the-line offering from Pride Racing, designed to deliver peak performance and maximum responsiveness on the track.

Developed with the primary goal of providing near-instant engagement without compromising on weight, the Matrix features an innovative engagement system that ensures virtually immediate power transfer ideal for explosive starts and technical sprints. At the heart of this system are two rows of 6 pawls (12 pawls in total), working in an alternating pattern. This mechanism achieves 216 points of engagement, with an ultra-low engagement angle of just 1.67°, allowing for an almost instant response with every pedal stroke.

To address one of the most common issues in BMX—interference between the brake caliper and the spokes the rear hub has been optimized for 120 mm rotors, providing improved clearance between the spokes and the caliper.

The Matrix hub stands as a benchmark for riders seeking precision, responsiveness, and reliability without compromise.

NOTE: A lock ring and spacers are included with the hub.

SPECIFICATIONS

• Material: 6061-T6 Aluminum
• Axle spacing: 110x10 mm
• Hole count: 28
• Driver standard: Shimano
• Engagement system: 216 points / 12 pawls
• Disc mount: ISO 6-bolt
• Hub bearings: 6903 (17x30x7 mm)
• Weight: 349 g
