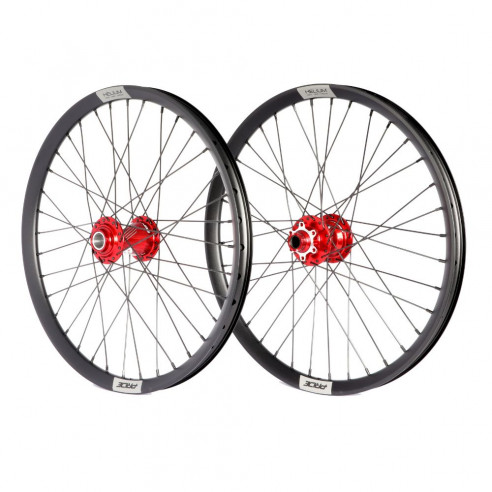

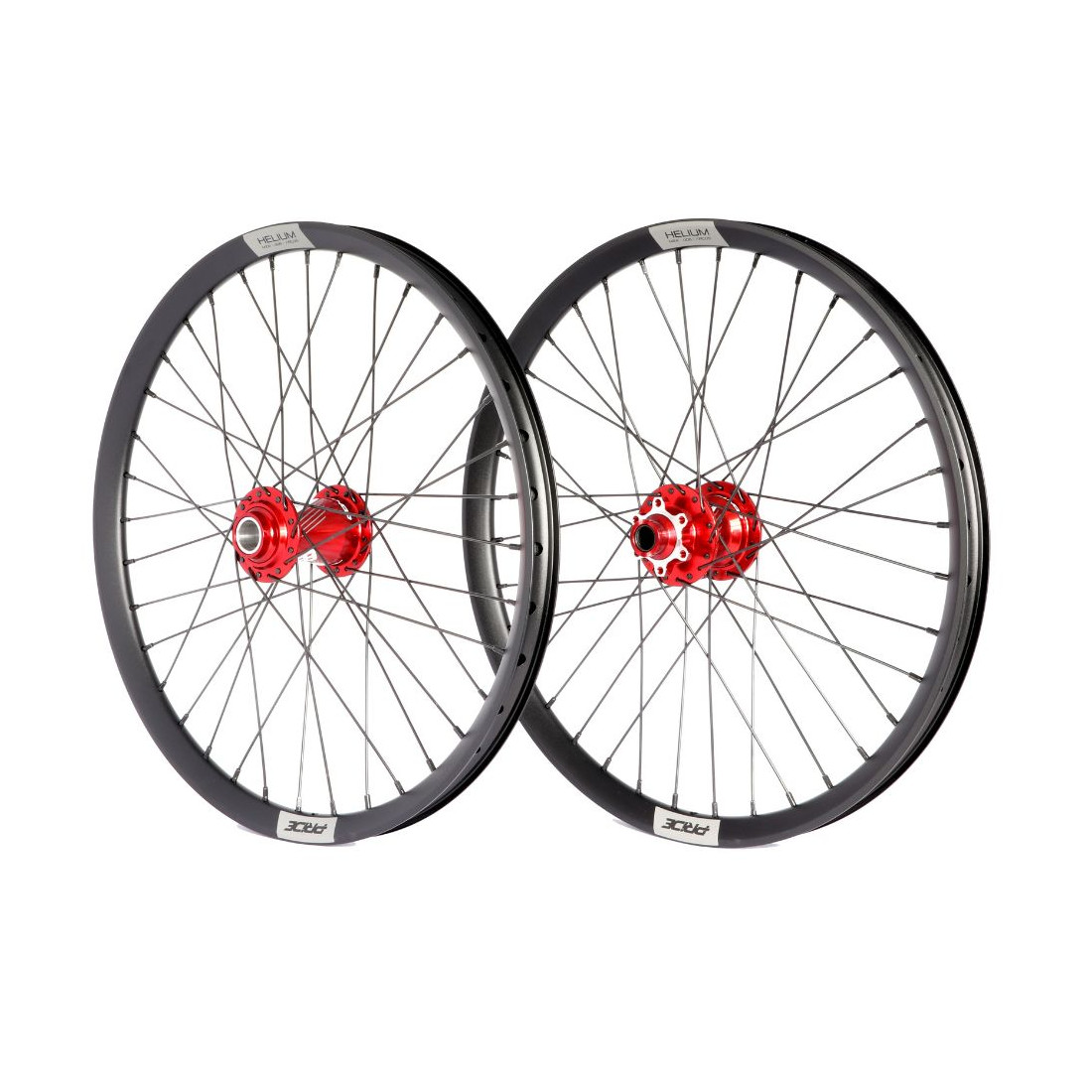

Wheels 20" (406) Pride Control v2 Red 15mm - Helium m24 Disque

WS-406-PRPR-A-0103
Last items in stock
€549.95
Tax included

PRIDE CONTROL WHEELS - HELIUM

The Pride Control V2 - Helium wheelset combines cutting-edge technology and premium materials to deliver outstanding performance including lightness, fast responsiveness, and rock-solid reliability. A perfect choice for riders seeking maximum performance.

The Pride Helium rim, specially developed for competition, stands out for its light weight, responsiveness, and strength. Weighing under 300g in Pro and Expert sizes, this aluminum rim ranks among the lightest on the market. Its low profile optimizes reactivity, providing explosive acceleration and excellent handling, ideal for competitions where every second counts.

It uses the advanced Arcos System® manufacturing process, allowing maximum precision in the rim’s internal design. This treatment ensures perfect control of the technical properties of 6069-T6 aluminum, a high-quality material that combines lightness and strength, capable of withstanding the most demanding tracks.

The wheelset is equipped with Pride Racing Control V2 hubs CNC machined from 6061-T6 aluminum for perfect precision. They feature high flanges that increase wheel stiffness for improved performance. The rear hub is designed to accept a 15mm thru-axle for increased strength and easier maintenance. The ISO6 disc mount allows precise rotor alignment according to your frame. The engagement system uses a 7075-T6 aluminum driver with 6 micro-toothed pawls engaging 3 at a time to develop 180 engagement points. This mechanism ensures almost instant acceleration, ideal for exiting corners or race starts, giving you a decisive advantage over the competition.


NOTES

  • The rear wheel is supplied with a lock ring and spacers to adjust the chain line.
  • Rim strips are not included
  • 15mm thru-axle not included (frame specific)

SPECIFICATIONS - RIMS

  • Model : Pride Helium Pro M24
  • Size / ETRTO : 20"" / 24-406
  • Material : 6069-T6 Aluminum
  • Walls : Double
  • Number of spokes : 36
  • Height : 19mm
  • Width : 28mm
  • V-Brake compatibility : No
  • Valve type : Presta
  • Compatible tire section : 29-65mm (20x1.40"" - 20x1.85"")

SPECIFICATIONS - HUBS

  • Material : 6061-T6 Aluminum
  • Front spacing : 20x100mm (thru-axle not included)
  • Rear spacing : 15x110mm (thru-axle not included)
  • Number of holes : 36
  • Driver standard : Shimano
  • Engagement type : 180 points / 6 pawls
  • Disc mount : ISO6
  • Front bearing : 6805
  • Rear bearing : MR18307

WEIGHT

  • Wheelset : 1566g
  • Front wheel : 722g
  • Rear wheel : 844g
TYPE
Pair (Front + Rear)
DIAMETER
406MM (PRO)
MATERIAL
ALUMINIUM
AXLE SIZE
20mm
BRAKE TYPE
DISC BRAKE ONLY
REAR HUB AXLE
15MM
FRONT HUB AXLE
20MM
HUB MARKS
Pride
RIM MARKS
Pride
HUBS COLOR
Red hubs
