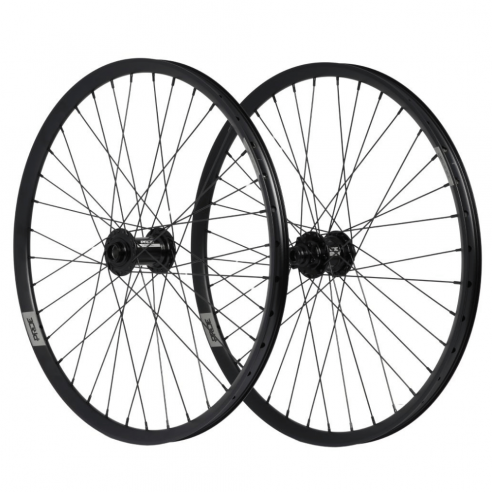

Wheels 24" (507) Pride Fusion 20/15mm - Helium m24

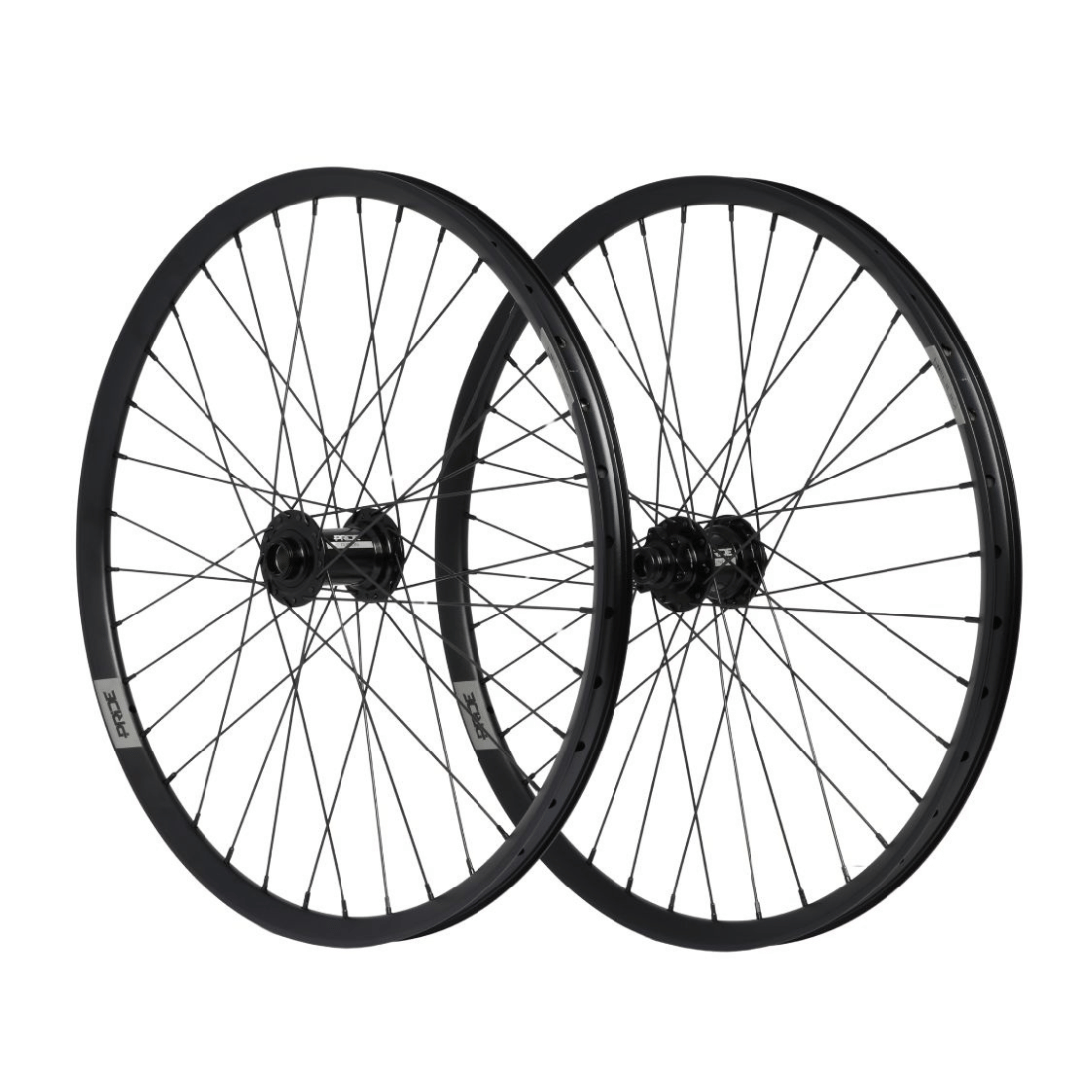

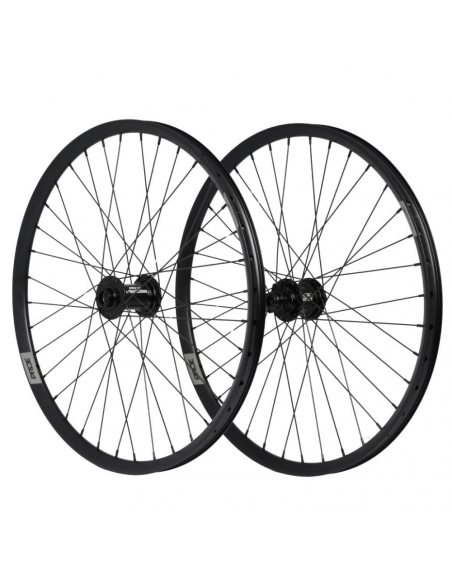

PRIDE FUSION - HELIUM WHEELSET

The Pride Fusion - Helium wheelset combines advanced technology and premium materials to deliver outstanding performance, featuring lightweight construction, instant responsiveness, and exceptional reliability. It is the perfect choice for riders looking to maximize performance.

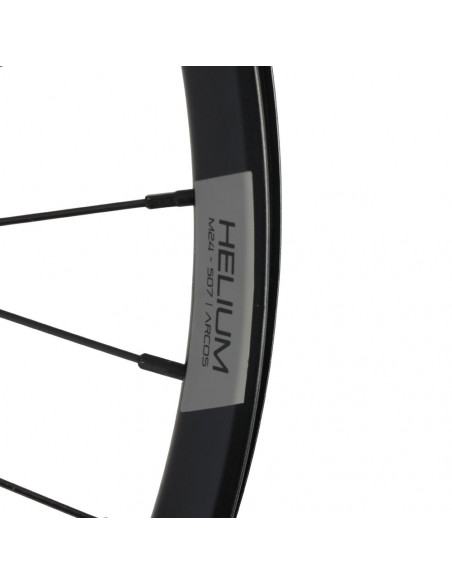

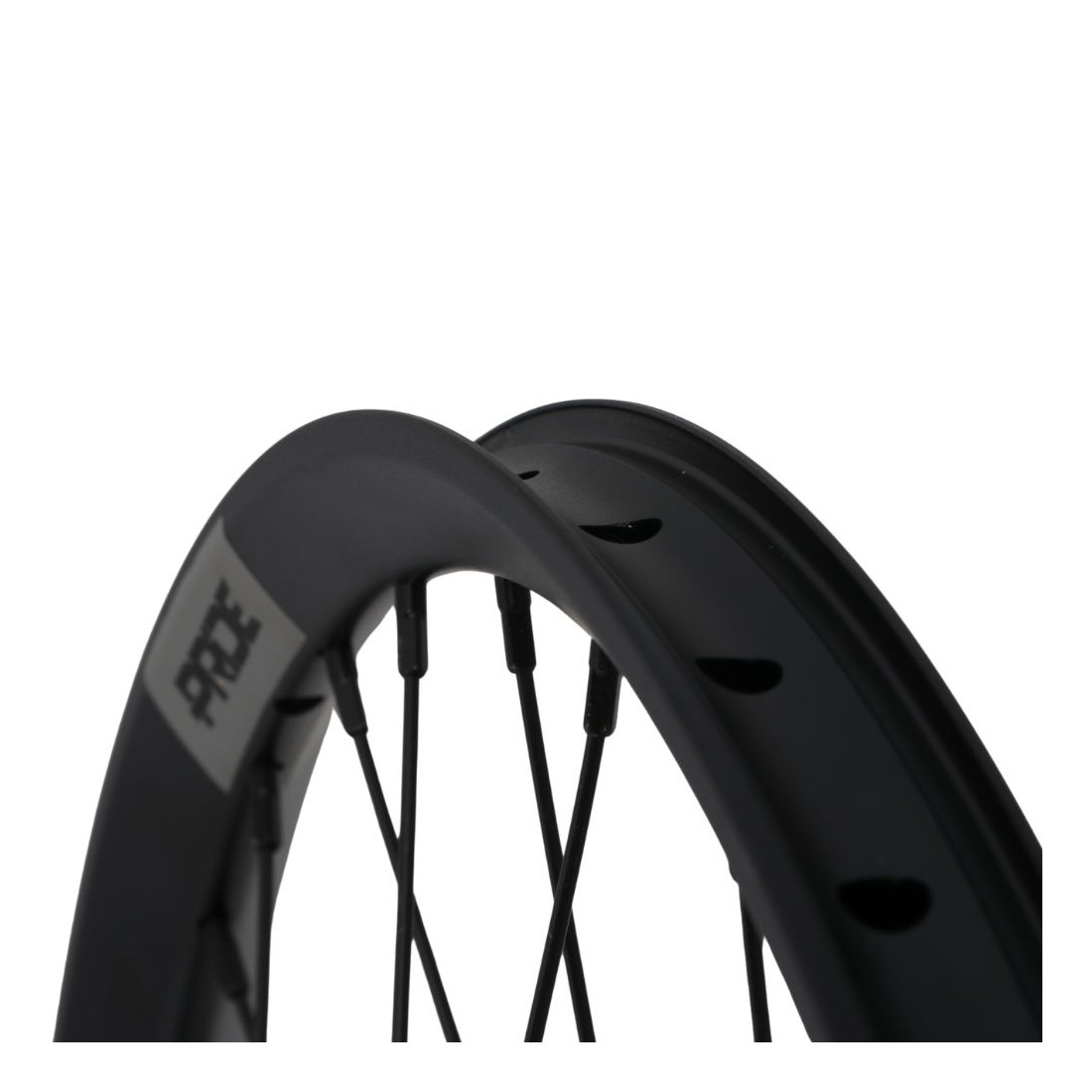

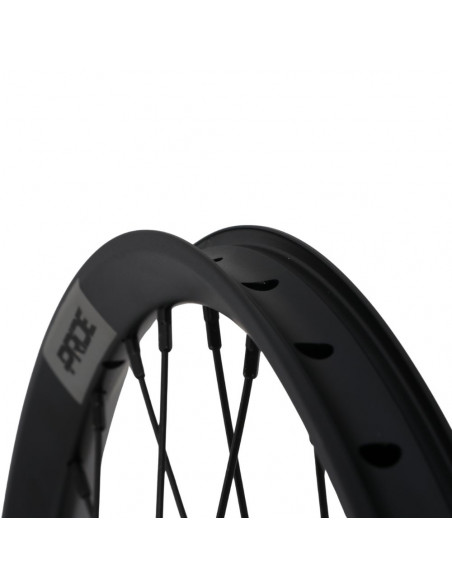

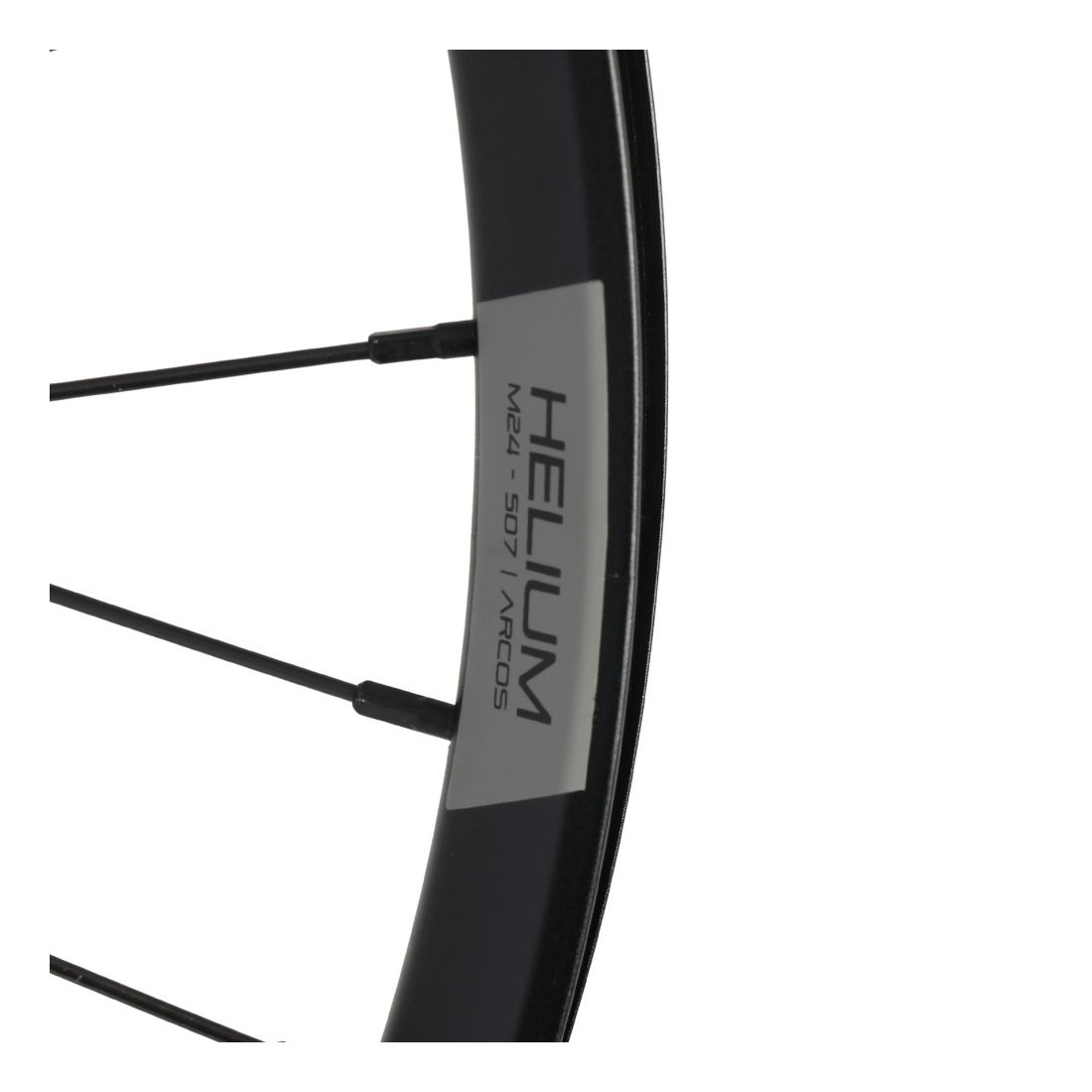

Specifically developed for racing, the Pride Helium rim stands out for its light weight, responsiveness, and durability. Weighing under 300 g in both Pro and Expert sizes, this aluminum rim is among the lightest on the market. Its low-profile design maximizes responsiveness, providing explosive acceleration and outstanding handling—ideal for competition where every second counts.

It features the advanced Arcos System® manufacturing process, delivering maximum precision in the rim's internal profile. This process ensures optimal control of the technical properties of 6069-T6 aluminum, a premium alloy that combines low weight with exceptional strength to withstand the most demanding race tracks.

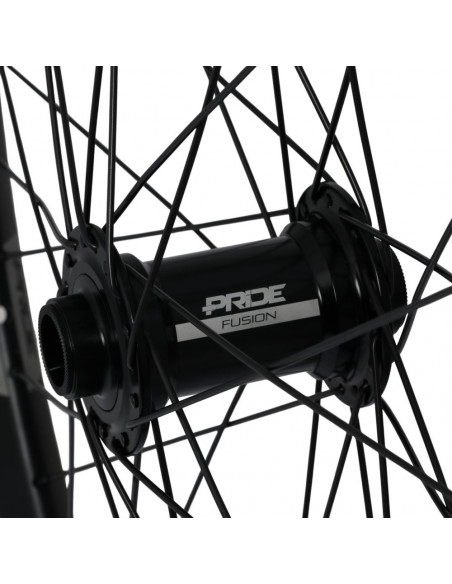

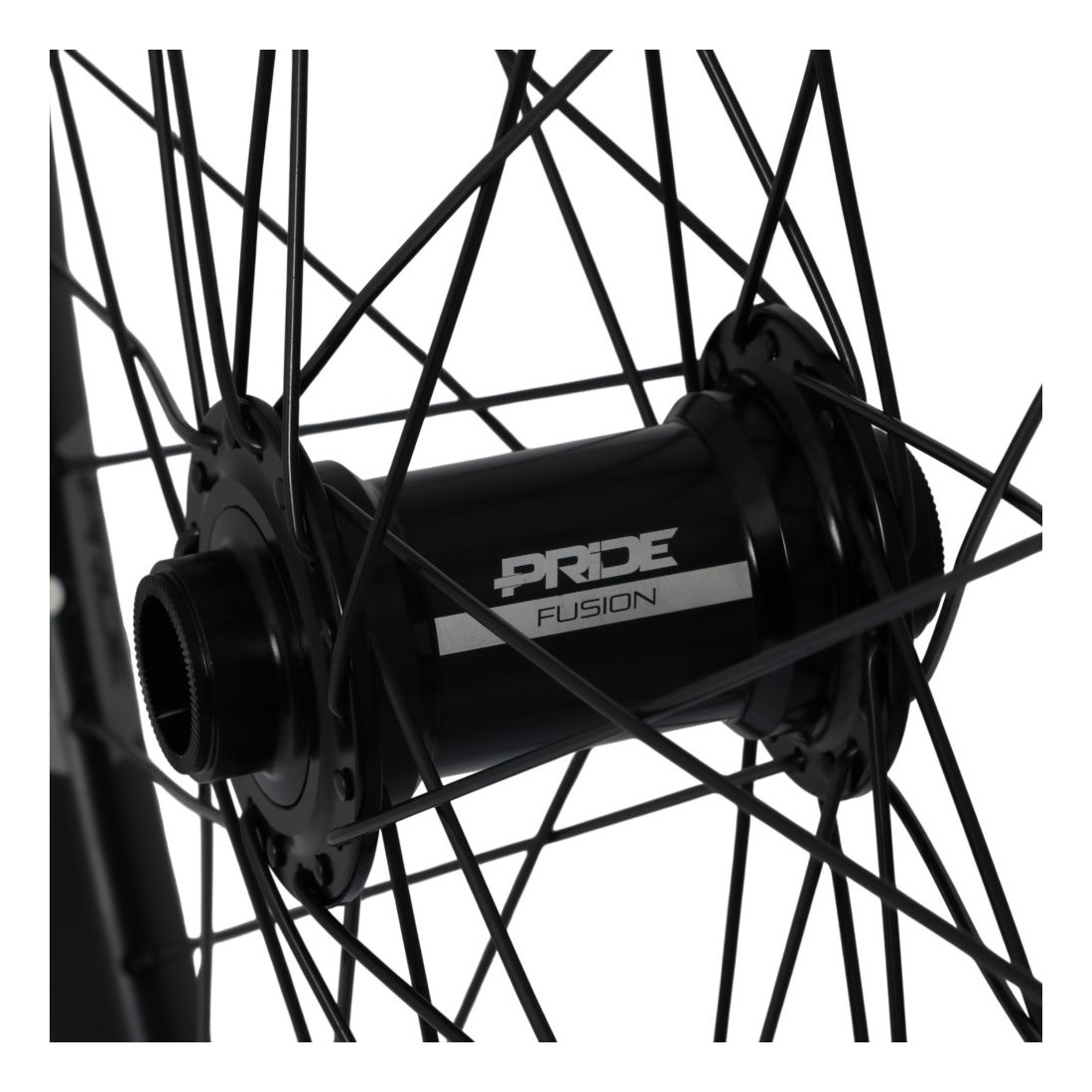

Fusion hubs are packed with technology. With an ultra-responsive 180-point engagement system, they provide minimal drag, outstanding durability, and an impressive weight of just 290 g. Designed with a 6-pawl mechanism and premium bearings, they deliver smooth operation, precise engagement, and maximum speed.

NOTES

• The rear wheel is supplied with a lockring and chainline spacers.
• Rim tape is not included.
• 15 mm thru-axle not included (frame-specific).

RIM SPECIFICATIONS

• Size / ETRTO: 24" / 24-507
• Material: 6069-T6 aluminum
• Construction: Double-wall
• Spoke Holes: 36
• Height: 19 mm
• Width: 28 mm
• V-Brake Compatible: No
• Valve Type: Presta
• Compatible Tire Size: 24 × 1.50" - 24 × 1.90"

HUB SPECIFICATIONS

• Material: 6061-T6 aluminum
• Front Spacing: 20 × 100 mm (thru-axle not included)
• Rear Spacing: 15 × 110 mm (thru-axle not included)
• Spoke Holes: 36
• Freehub Standard: Shimano
• Engagement System: 180 points / 6 pawls
• Disc Mount: ISO 6-bolt
• Front Bearing: 6805
• Rear Bearing: MR18307

WEIGHT

• Wheelset: 1699 g
• Front Wheel: 805 g
• Rear Wheel: 894 g
