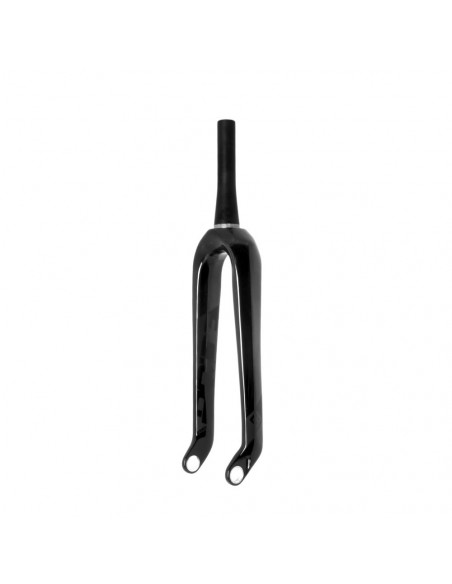

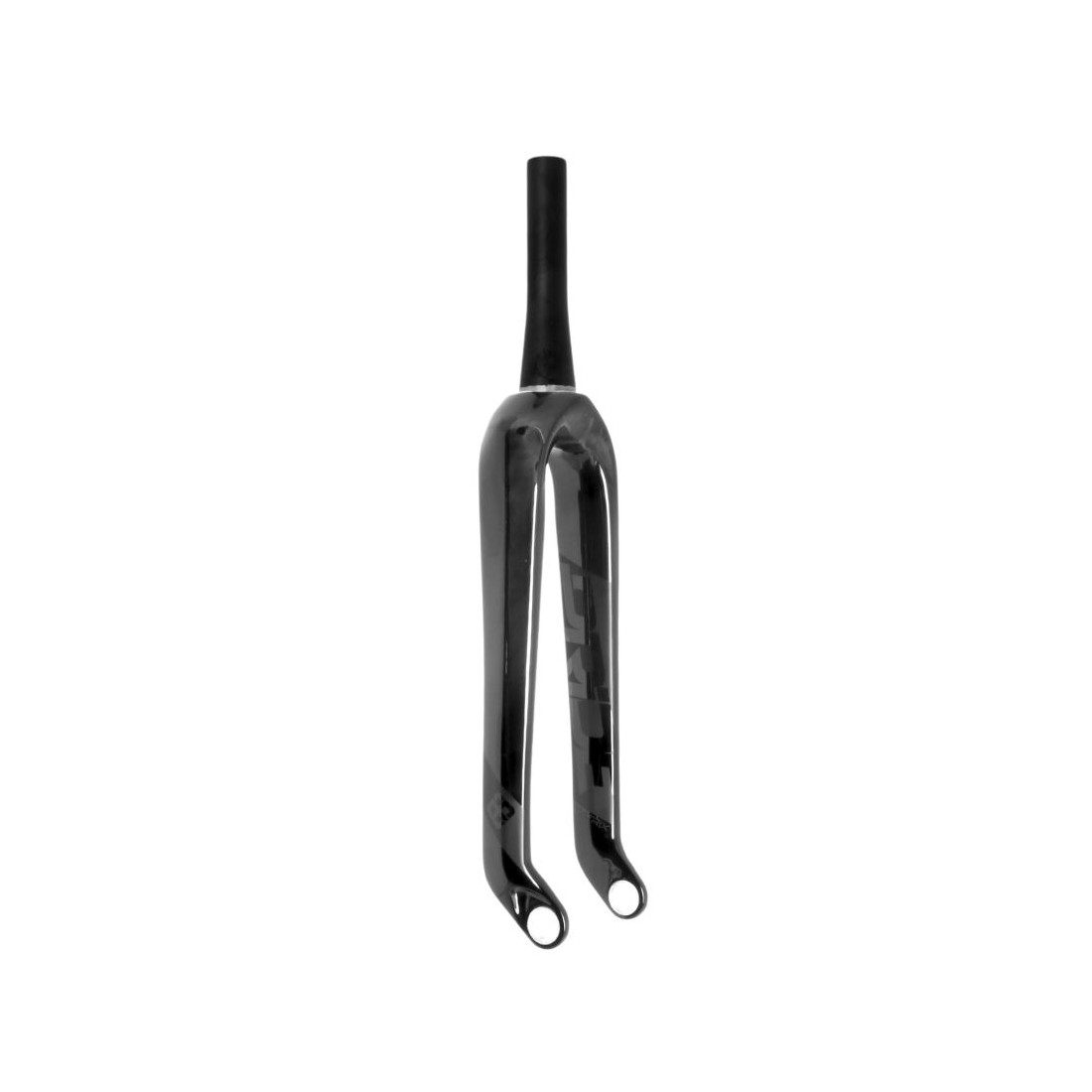

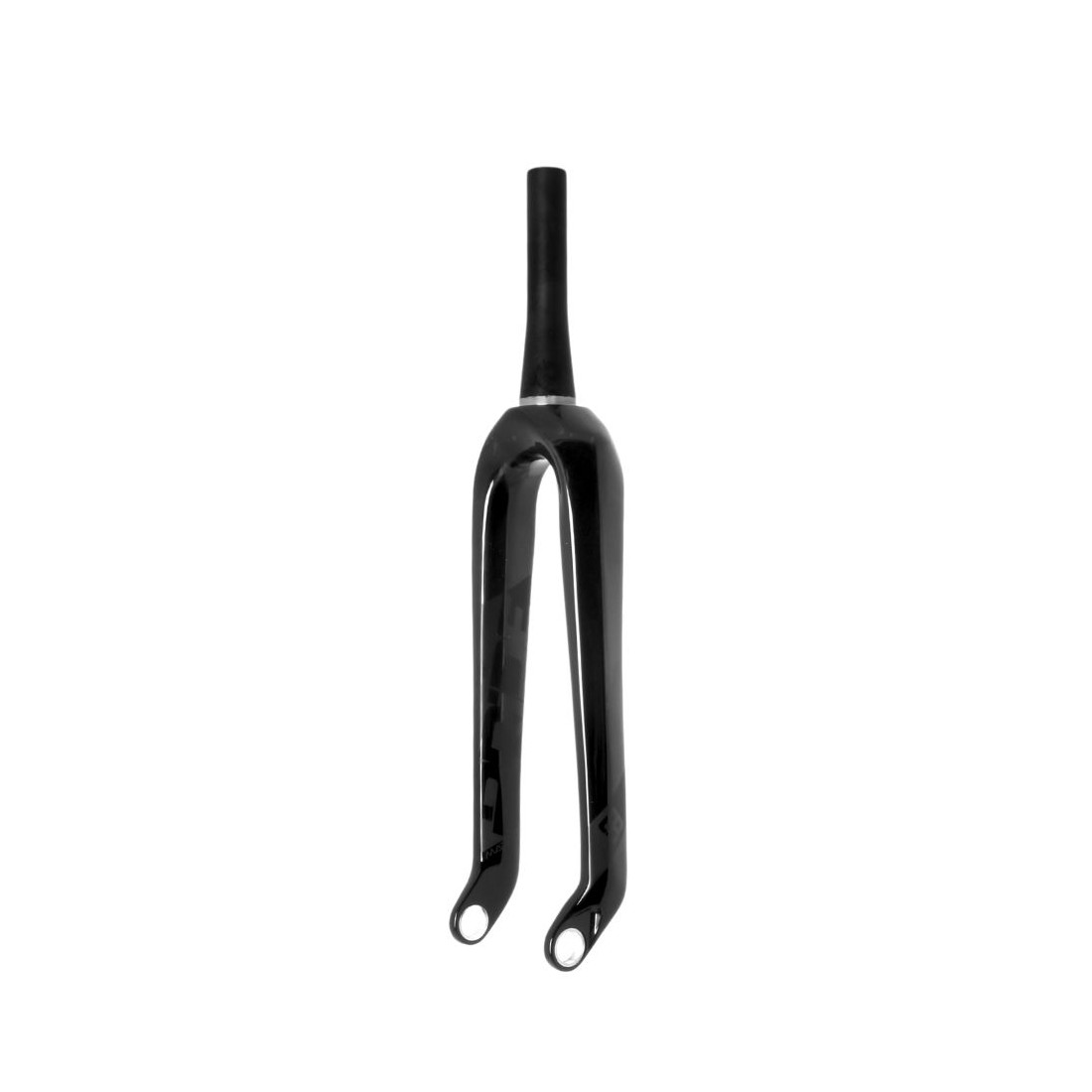

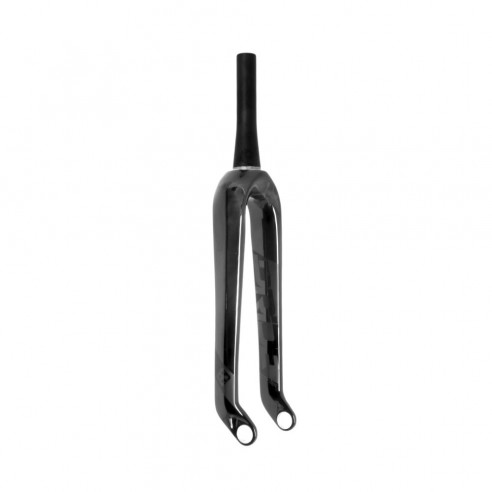

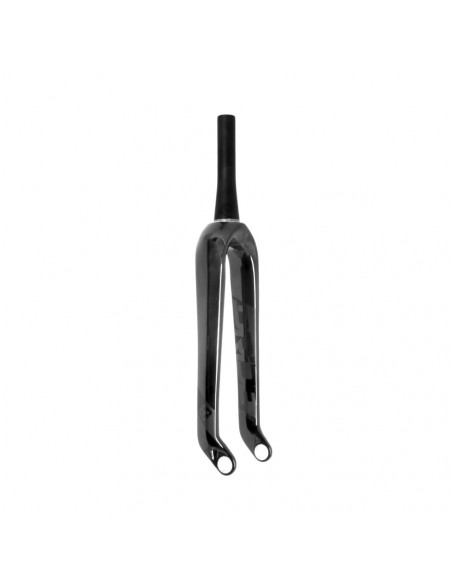

Pride Matrix Tapered 24" Ud Gloss Fork - 20mm

FORK PRIDE MATRIX TAPERED 24""

With its glossy/matte finish, the new Pride Matrix fork features a sleek and elegant design. It consists of two distinct parts. The legs are made 100% from HM Toray® carbon combined with an internal polymer (PMI) structure to increase overall stiffness and strength. Different types of carbon fibers are used depending on their specific properties to optimally handle various loads, such as lateral, torsional, and impact forces.

Its steerer is made from 7075-T6 aluminum, a high-strength alloy, ensuring structural integrity and long-term durability.

Compliant with EN 16054 standard.

SPECIFICATIONS

• Material: Toray Carbon / 7075 Aluminum
• Wheel Size: 24""
• Axle: 20mm (not included)
• Steerer Diameter: Tapered 1""-1/8 - 1.5""
• Steerer Length: 165mm
• Fork Height: 357mm
• Offset: 30mm
• Dropout Thickness: 8mm
• Compression Bolt: M22x1.5mm
• Compression Bolt Length: 20mm
• Weight: 639g (with compression bolt)

TORQUE SETTINGS

IMPORTANT: Always use a torque wrench

• Compression Bolt Torque: 3 Nm (Max)
  • Stem Bolt Torque: 10 Nm (Max)
  • Hub Axle Torque: 8 Nm (Max)

IMPORTANT NOTES

This fork is designed and created for BMX RACE only. Compliant with EN and CPSC safety requirements. EN 16054 standard compliant. It is the rider's responsibility to understand their limits and properly maintain a high-end 100% carbon fork. Carbon cannot be made to absorb heavy collisions. After a crash or impact, carefully inspect your fork. If damage is suspected, it is YOUR responsibility to have a professional check its integrity.

Always respect torque settings. Use a split bearing ring if possible.
