Pride Matrix Tapered 24" Ud Gloss Fork - 10mm

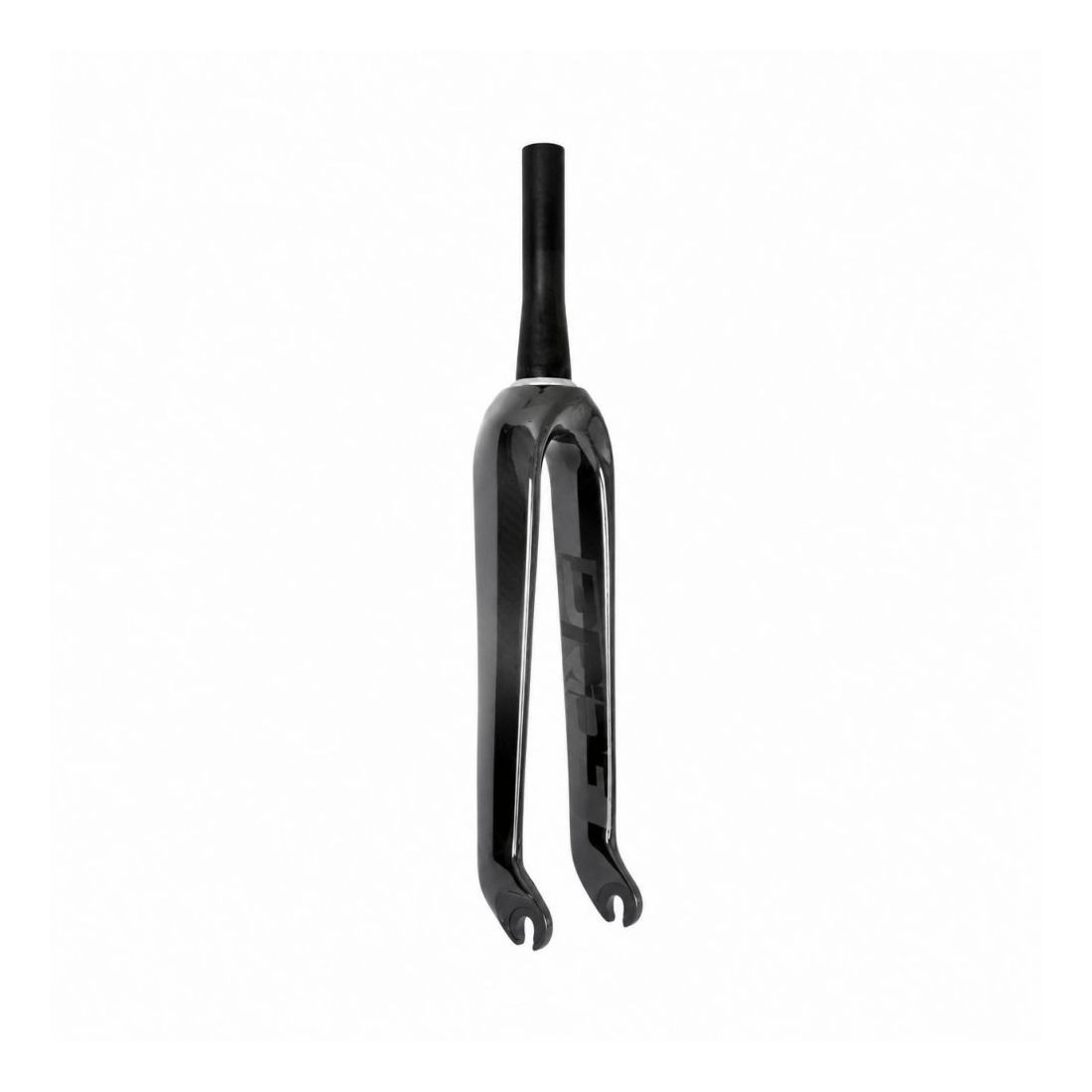

PRIDE MATRIX TAPERED FORK 24"

With its glossy/matte finish, the new Pride Matrix fork sports a sleek and elegant design. It is made up of two distinct parts. The legs are made 100% from HM Torray® carbon combined with an internal polymer (PMI) structure that increases the stiffness and strength of the assembly. It uses different types of carbon fiber based on their specific properties to best manage different types of loads in the areas where they occur, such as lateral loads, torsion, and impacts.

Its steerer tube is made from 7075-T6 aluminum, an alloy known for its high strength. This feature guarantees not only great structural strength but also increased durability.

Compliant with the EN 16054 standard.

SPECIFICATIONS

• Material: Torray Carbon / Aluminum 7075
• Wheel size: 24"
• Axle: 10mm
• Steerer diameter: Tapered 1"-1/8 - 1.5"
• Steerer length: 165mm
• Fork height: 357mm
• Offset: 30mm
• Dropout thickness: 8mm
• Compression bolt: M22x1.5mm
• Compression bolt length: 20mm
• Weight: 632g (with compression bolt)

TIGHTENING TORQUES

IMPORTANT: Always use a torque wrench

• Compression bolt torque: 3 Nm (Max)
  • Stem bolt torque: 10 Nm (Max)
  • Hub axle torque: 8 Nm (Max)

IMPORTANT NOTES

This fork was designed and built for BMX RACE only. Compliant with EN and CPSC safety requirements.
Compliant with the EN 16054 standard.
It is always the buyer's responsibility to know their own limits and how to maintain a high-end 100% carbon fork. We cannot design carbon capable of absorbing a major collision. After a crash or collision, please carefully check your fork. If you suspect any damage, it is YOUR responsibility to have the integrity of your fork inspected by a professional.

Always respect the tightening torques. Use a split bearing collar if possible
